Optimal Energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings and oil seal that help the compressor airend to operate with good dynamic balance, low vibration, low rotation speed and low noise level.
T.E.F.C Highly efficient, totally enclosed fan-cooled (T.E.F.C.),IP55, class F electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from “SKF”are fitted for continuous trouble-free operation.

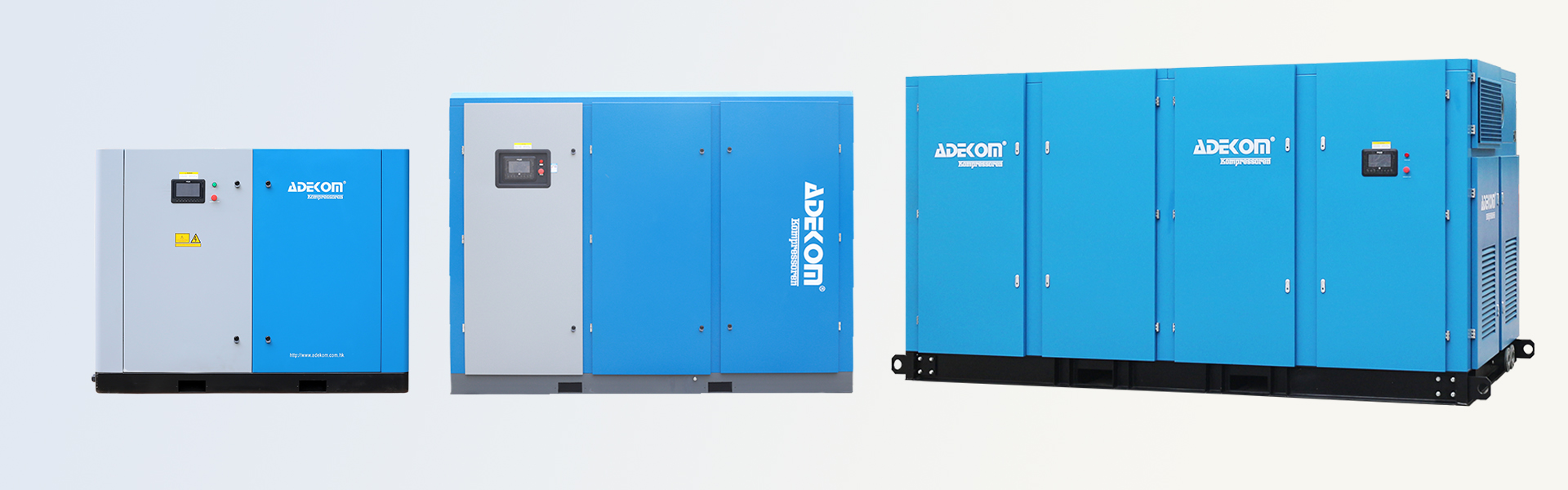

K-KD Series
|
Model |
K3 | K4 | K5 | KA7 | KA11 | KB15 | KB18 | KB22 | KC30 | KC37 | KC45 | KD55 | ||
|
Capacity FAD/Working pressure |
m³/min/bar(g)
|
0.51/7 | 0.65/7 | 0.90/7 | 1.35/7 | 2.05/7 | 2.30/7 | 3.30/7 | 3.80/7 | 5.40/7 | 6.80/7 | 7.80/7 | 10.50/7 | |
| 0.44/8 | 0.60/8 | 0.85/8 | 1.21/8 | 1.93/8 | 2.16/8 | 3.19/8 | 3.62/8 | 5.20/8 | 6.42/8 | 7.62/8 | 10.10/8 | |||
| 0.37/10 | 0.51/10 | 0.72/10 | 1.06/10 | 1.65/10 | 1.93/10 | 2.88/10 | 3.25/10 | 4.80/10 | 5.69/10 | 6.71/10 | 8.70/10 | |||
| 0.30/13 | 0.40/13 | 0.61/13 | 0.85/13 | 1.28/13 | 1.61/13 | 2.42/13 | 2.93/13 | 4.05/13 | 4.69/13 | 5.54/13 | 7.45/13 | |||
|
Cooling method |
Air cooled | Air-cooled and water-cooled available | ||||||||||||
|
Discharge air temperature |
℃ | Air-cooled version: Ambient temp. +8~15℃ / Water-cooled: ≤40℃ | ||||||||||||
|
Lubricant oil capacity
|
L | 8 | 10 | 12 | 13 | 18 | 20 | 48 | ||||||
|
Noise level |
dB(A） | 68±3 | 69±3 | 71±3 | 72±3 | |||||||||
|
Motor |
Power |
kW | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 |
| Speed | rpm | 2870 | 2860 | 2890 | 2925 | 2930 | 2950 | 2960 | 2965 | |||||
|
Starting method |
Direct starting |
Y-Δ Star-Delta Starting |
||||||||||||
|
Power Supply |
220V/380V/440V 50Hz/60Hz | |||||||||||||
|
Dimensions |
L |
mm | 680 | 700 | 800 | 1250 | 1570（ 1270） |
2000（1540）
|
||||||
| W | mm | 830 | 880 | 960 | 900 | 1000（ 810） |
1300（870）
|
|||||||
| H | mm | 1070 | 1110 | 1230 | 1320 | 1540（ 1190） |
1655（1650）
|
|||||||
|
Weight |
kg | 230 | 230 | 250 | 270 | 400 | 420 | 450 | 550 | 750 | 990 | 1200 |
1510（1310）
|
|
| Discharge air pipe connection | Inch/mm | 1/2" | 3/4" | 1" | 1 1/4"(1 1/2") | 2"(1 1/2") | ||||||||
|
Cooling water pipe connection
|
Inch | 1" | ||||||||||||
KD-KG Series
| Model | KD75 | KE90 | KE110 | KE132 | KF160 | KF185 | KF220 | KF250 | KG315 | KG355 | ||
| Capacity FAD/Working pressure |
m³/min
/bar(g)
|
13.20/7 | 16.50/7 | 21.00/7 | 24.10/7 | 29.50/7 | 32.00/7 | 39.10/7 | 45.00/7 | 59.00/7 | 66.00/7 | |
| 12.96/8 | 16.20/8 | 20.48/8 | 23.50/8 | 27.80/8 | 31.00/8 | 37.77/8 | 43.95/8 | 56.82/8 | 61.94/8 | |||
| 11.39/10 | 14.00/10 | 17.50/10 | 21.00/10 | 25.00/10 | 28.10/10 | 33.77/10 | 38.50/10 | 51.34/10 | 56.65/10 | |||
| 10.20/13 | 12.10/13 | 14.85/13 | 18.38/13 | 21.50/13 | 25.00/13 | 29.98/13 | 33.00/13 | 45.62/13 | 48.36/13 | |||
| Cooling method | Air-cooled and water-cooled available | |||||||||||
| Discharge air temperature | ℃ | Air-cooled version: Ambient temp. +8~15℃ / Water-cooled: ≤40℃ | ||||||||||
| Lubricant oil capacity | L | 56 | 65 | 80 | 160 | 200 | 250 | |||||
| Noise level | dB(A） | 75±3 | 78±3 | 82±3 | ||||||||
| Motor | Power | kW | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 | 315 | 355 |
| Speed | rpm | 2975 | 2965 | 1485/2975 | 1490/2985 | 1495 | ||||||
| Starting method | Y-Δ Star-Delta/DOL Starting | Y-Δ Star-Delta/DOL/Direct Starting | ||||||||||
| Power Supply | 220V/380V/440V 50Hz/60HZ | 380V/3KV/6KV/10KV 50Hz | ||||||||||
| Dimensions | L | mm | 2000（2000） | 2490（2200） | 2490（2300） | 2790（2800） | 3590（3350） | 5000（4050） | ||||
| W | mm | 1400（1050） | 1460（1300） | 1610（1300） | 1760（1750） | 2060（2000） | 2200 | |||||
| H | mm | 1655（1600） | 1950（1800） | 2050（1850） | 2300（2000） | 2350 | ||||||
| Weight | kg | 1980（1880） |
2450（2350）
|
2600（2500）
|
2800（2700）
|
3800（3600）
|
4050（3900） |
4850（4700）
|
5050（4900)
|
8000（7750）
|
8200（7935）
|
|
| Discharge air pipe connection | mm | 2" | DN80 | DN80 | DN100 | DN125 | ||||||
| Cooling water pipe connection | Inch/mm | 1" | DN40 | DN50 | DN65 | |||||||
(1)Unit performance measured according to ISO 1217, Ed. 3, Annex C-1996.
(2)Noise level measured according to Pneurop / Cagi PN8NTC 2.2 test code; tolerance ±3dB(A).
(3)Data inside brackets is for water-cooled models.
Note: Adekom reserves the right to make changes without prior notice. For further information, please contact the manufacturer or your local sales agent.
It can be widely used in general manufacturing, automotive industry, and oil and gas sector.
