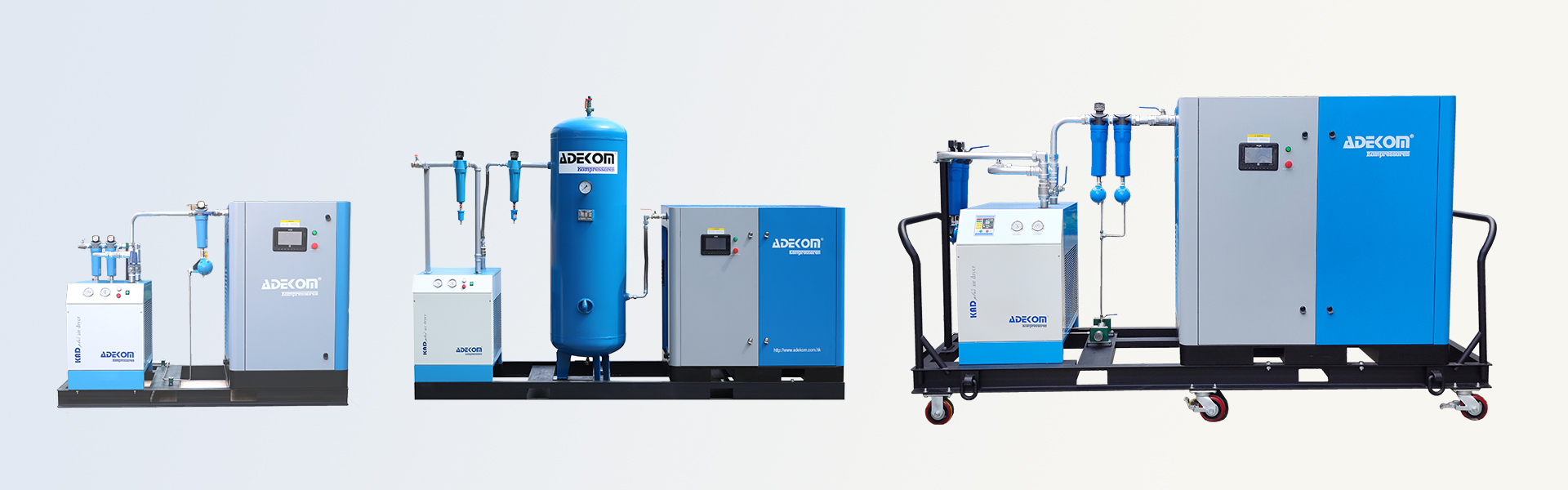

ADEKOM Skid-mounted Compressed Air System packages are turnkey compressed air systems designed to meet your custom needs. They save you time and money on integration by coming complete with controls, dryers, filters, tanks, drains based on your specific requirements. They include interconnecting piping and are pre-wired for plug-and-play installation. Rigid bases with forklift holes and lifting rings facilitate safe transport. Once onsite, skid systems need little or no assembly. Commissioning and start up are fast and simple. This is great for remote locations where installation costs are high due to travel, hourly labor and overtime and are also ideal for those who need industrial air for temporary uses or building a permanent plant room is not feasible.
Optimal Energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings and oil seal that help the compressor airend to operate with good dynamic balance, low vibration, low rotation speed and low noise level.
T.E.F.C Highly efficient, totally enclosed fan-cooled (T.E.F.C.),IP55, class F electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from “SKF”are fitted for continuous trouble-free operation.
With built-in safety protections, low noise levels, high efficiency, and powerful cooling performance, the compressors deliver exceptional reliability and performance.
The aluminum fins are treated with a hydrophilic coating to increase the effective heat transfer surface area, while also preventing condensate from accumulating on the surface—ensuring optimal cooling performance and unobstructed airflow.
Paired with a fin-type high-efficiency condenser, the system achieves outstanding heat dissipation performance.
Start/Stop Delay with Lockout Time Protection for Compressor
Three Independent Fault Signal Inputs with Alarms
User-Friendly Interface with Intuitive Operation
Features a clear and straightforward panel layout, designed for ease of use and quick access to essential functions.
| Model | KB18-RDF | KB22-RDF | KC30-RDF | KC37-RDF | KC45-RDF | KD55-RDF | KD75-DRF |
| Capacity FAD（m³/min） | 3.19 | 3.62 | 5.2 | 6.42 | 7.62 | 10.1 | 12.96 |
| Working pressure bar(g) | 8 | ||||||
| Cooling method | Air cooled | ||||||
| Noise level dB(A) | 71±3 | 72±3 | 75±3 | ||||
| Outlet Dust Content(μm) | ≤0.01 | ||||||
| Outlet Oil Content(ppm) | ≤0.003 | ||||||
| Pressure Dew Point（℃） | 3～10℃ or -20～-70℃ | ||||||
| Power supply(Hz) | 220V/380V/440V 50Hz/60Hz | ||||||
| Nominal power(kW) | 18.5kW | 22kW | 30kW | 37kW | 45kW | 55kW | 75kW |
|
Discharge air pipe connection (inch) |
1-1/4〞 | 2〞 | 2-1/2〞 | ||||
The system is widely used in industries such as subways, tunnel construction, road excavation, ports, shipbuilding, hydro-power stations, leak detection, offshore drilling platforms, air separation industry application.
