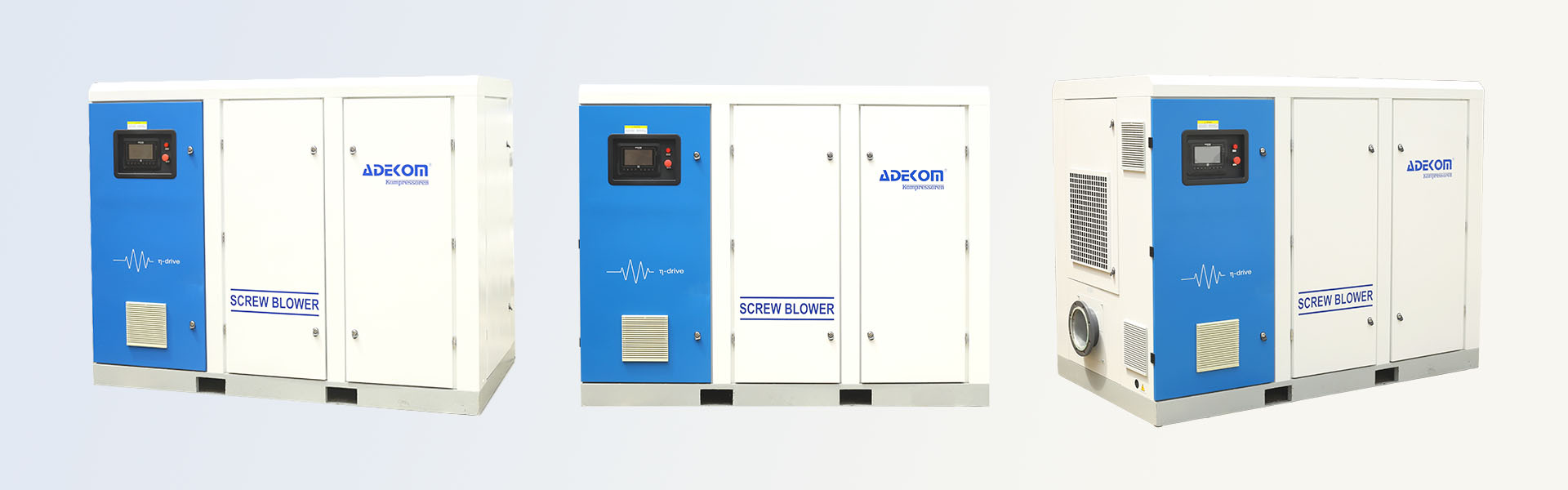

ADEKOM Oil-free Screw Blower

Product Features

High Efficiency Permanent Magnet Motor

IPM motor constructed with neodymium iron boron permanent magnet materials can prevent demagnetized even under high operating temperature up to 180℃. Services life is up to 15 years!
Halo-resistance enameled cable with remarkable insulation performance is applied to stator coil for long service life.
One common shaft structure design, motor without bearing structure to guarantee 100% transmission efficiency.
No more greasing and replacement of bearings at regular interval.
High temperature protection via PTC/PT100 is available.
Wide adjustable speed range and high precision which lead to wider range of air capacity modulation.
Compact size motor saves compressor foot print.
Double layer housing with oil circulation that reduces noise level and realizes low vibration and stable operation.
Very high efficiency: IE4 and IP65 protection class as options.

State-of-the-art oil-free screw element

Certified oil-free screw compression technology ( Class 0 certified )
Durably-coated rotors ensure optimal operational clearances and increased lifetime
Perfectly sized rotor profile result in the lowest specific power consumption
Tuned cool oil injection to bearings and gears maximizing the lifetime
Motor-screw blower transmission over a heavy duty gearbox
Low maintenance costs, no wearing components such as belts, pulleys,...etc.

High Efficiency Oil-cooled Permanent Magnet Motor

The intake and exhaust ports are installed in fixed positions to facilitate pipe connection.
All grilles are equipped with inner lining to reduce noise.
Independent cooling air flow to avoid recirculation.

Electrical cubicle with integrated iPM VSD frequency inverter

Proven design integrating all required electrical components for optimum reliability ( EMC filter, Variable frequency drive, RFI filter, smart controller ).
Reduced installation and start-up cost thanks to complete integration.

Advanced touch screen monitoring system and controller

To ensure maximum machine safety and easy networking,the intelligent PLC system controls both the blower and the integrated frequency inverter.
Monitoring of all parameters to ensure maximum reliability for your blower installation.
User-friendly Touch Screen Panel
Included warning indications, maintenance scheduling and online visualization of the machine's condition

Technical Parameter

Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF7EPM-①/②	3500	Air flow capacity(m³/min)	3.2	3.1	3.0	Permanent magnet frequency inverter starting	DN80	1600x1100x1500
	3500	Motor rating(kW)	11	11	15
	4000	Air flow capacity(m³/min)	3.9	3.8	3.7
	4000	Motor rating(kW)	11	11	15
	4500	Air flow capacity(m³/min)	4.6	4.4	4.3
	4500	Motor rating(kW)	11	15	15
	5000	Air flow capacity(m³/min)	5.3	5.2	5.0
	5000	Motor rating(kW)	15	15	18.5
	5500	Air flow capacity(m³/min)	6.0	5.9	5.6
	5500	Motor rating(kW)	15	18.5	22
	6000	Air flow capacity(m³/min)	6.8	6.6	6.3
	6000	Motor rating(kW)	15	18.5	22
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF10EPM-①/②	3500	Air flow capacity(m³/min)	4.4	4.3	4.0	Permanent magnet frequency inverter starting	DN80	1800x1100x1500
	3500	Motor rating(kW)	11	15	15
	4000	Air flow capacity(m³/min)	5.3	5.1	4.9
	4000	Motor rating(kW)	15	15	18.5
	4500	Air flow capacity(m³/min)	6.2	6.0	5.7
	4500	Motor rating(kW)	15	15	18.5
	5000	Air flow capacity(m³/min)	7.2	7.0	6.6
	5000	Motor rating(kW)	15	18.5	22
	5500	Air flow capacity(m³/min)	8.2	8.0	7.5
	5500	Motor rating(kW)	18.5	22	30
	6000	Air flow capacity(m³/min)	9.4	9.0	8.6
	6000	Motor rating(kW)	22	22	30
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF25EPM-①/②	2800	Air flow capacity(m³/min)	11.4	11.3	11.2	Permanent magnet frequency inverter starting	DN150	2000x1200x1900
	2800	Motor rating(kW)	30	30	37
	3200	Air flow capacity(m³/min)	13.4	13.2	13.1
	3200	Motor rating(kW)	30	30	45
	3600	Air flow capacity(m³/min)	15.4	15.2	15.0
	3600	Motor rating(kW)	30	37	45
	4000	Air flow capacity(m³/min)	17.5	17.3	17.1		DN200
	4000	Motor rating(kW)	37	45	55
	4400	Air flow capacity(m³/min)	19.6	19.5	19.2
	4400	Motor rating(kW)	37	45	55
	4800	Air flow capacity(m³/min)	21.9	21.7	21.5
	4800	Motor rating(kW)	45	55	75
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF30EPM-①/②	2800	Air flow capacity(m³/min)	15.6	15.5	15.3	Permanent magnet frequency inverter starting	DN150	2000x1200x1900
	2800	Motor rating(kW)	30	37	45		DN150
	3200	Air flow capacity(m³/min)	18.2	18.1	17.9		DN200
	3200	Motor rating(kW)	37	45	55
	3600	Air flow capacity(m³/min)	20.9	20.7	20.5
	3600	Motor rating(kW)	37	45	55
	4000	Air flow capacity(m³/min)	23.8	23.6	23.3
	4000	Motor rating(kW)	45	55	75
	4400	Air flow capacity(m³/min)	26.7	26.5	26.2
	4400	Motor rating(kW)	45	55	75
	4800	Air flow capacity(m³/min)	29.9	29.6	29.3
	4800	Motor rating(kW)	55	75	75
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF45EPM-①/②	2600	Air flow capacity(m³/min)	23.2	23.0	22.6	Permanent magnet frequency inverter starting	DN200	2650x1300x1850
	2600	Motor rating(kW)	45	45	55
	3000	Air flow capacity(m³/min)	27.5	27.2	26.7
	3000	Motor rating(kW)	45	55	75
	3400	Air flow capacity(m³/min)	31.6	31.3	30.7
	3400	Motor rating(kW)	55	55	75
	3800	Air flow capacity(m³/min)	35.6	35.2	34.6		DN250
	3800	Motor rating(kW)	55	75	90
	4200	Air flow capacity(m³/min)	39.6	39.2	38.5
	4200	Motor rating(kW)	75	75	90
	4600	Air flow capacity(m³/min)	43.7	43.2	42.5
	4600	Motor rating(kW)	75	90	110
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF55EPM-①/②	2600	Air flow capacity(m³/min)	28.9	28.6	28.2	Permanent magnet frequency inverter starting	DN200	2650x1300x1850
	2600	Motor rating(kW)	55	55	75		DN200
	3000	Air flow capacity(m³/min)	34.1	33.8	33.3		DN250
	3000	Motor rating(kW)	55	75	90
	3400	Air flow capacity(m³/min)	39.3	38.9	38.4
	3400	Motor rating(kW)	75	75	90
	3800	Air flow capacity(m³/min)	44.1	43.7	43.1
	3800	Motor rating(kW)	75	90	110
	4200	Air flow capacity(m³/min)	49.1	48.6	48.0
	4200	Motor rating(kW)	90	90	110
	4600	Air flow capacity(m³/min)	54.1	53.6	52.8
	4600	Motor rating(kW)	90	110	132
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF65EPM-①/②	2000	Air flow capacity(m³/min)	36.0	35.7	35.0	Permanent magnet frequency inverter starting	DN250	3000x1400x2100
	2000	Motor rating(kW)	75	75	90
	2200	Air flow capacity(m³/min)	40.4	40.1	39.3
	2200	Motor rating(kW)	75	90	110
	2400	Air flow capacity(m³/min)	44.9	44.6	43.7
	2400	Motor rating(kW)	75	90	110
	2600	Air flow capacity(m³/min)	49.7	49.3	48.3
	2600	Motor rating(kW)	90	90	110
	2800	Air flow capacity(m³/min)	54.0	53.7	52.6
	2800	Motor rating(kW)	90	110	132
	3000	Air flow capacity(m³/min)	58.5	58.1	56.9
	3000	Motor rating(kW)	90	110	132
	3200	Air flow capacity(m³/min)	63.0	62.6	61.3
	3200	Motor rating(kW)	110	110	160
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF100EPM-①/②	2000	Air flow capacity(m³/min)	55.3	54.9	54.2	Permanent magnet frequency inverter starting	DN300	3300x1700x2300
	2000	Motor rating(kW)	110	132	160
	2200	Air flow capacity(m³/min)	62.0	61.6	60.8
	2200	Motor rating(kW)	110	132	160
	2400	Air flow capacity(m³/min)	69.1	68.6	67.7
	2400	Motor rating(kW)	132	160	185
	2600	Air flow capacity(m³/min)	76.3	75.8	74.8
	2600	Motor rating(kW)	132	160	185
	2800	Air flow capacity(m³/min)	82.7	82.2	81.1
	2800	Motor rating(kW)	160	185	200
	3000	Air flow capacity(m³/min)	89.1	88.6	87.4
	3000	Motor rating(kW)	160	185	220
	3200	Air flow capacity(m³/min)	95.7	95.0	93.8
	3200	Motor rating(kW)	185	185	220
Model	Speed (r/rpm)	Discharge pressure (Kpa)	100	120	150	Starting method	Discharge pipe connections	Dimensions (mm)
KGF200EPM-①/②	1800	Air flow capacity(m³/min)	104.4	103.1	101.2	Permanent magnet frequency inverter starting	DN400	3800x2000x2500
	1800	Motor rating(kW)	200	250	280
	2100	Air flow capacity(m³/min)	123.4	121.9	119.6
	2100	Motor rating(kW)	250	280	315
	2300	Air flow capacity(m³/min)	137.9	136.2	133.6
	2300	Motor rating(kW)	250	315	355
	2500	Air flow capacity(m³/min)	152.9	151	148.2
	2500	Motor rating(kW)	280	315	355
	2700	Air flow capacity(m³/min)	167.7	165.6	162.5
	2700	Motor rating(kW)	315	355	400
	2900	Air flow capacity(m³/min)	181.9	179.6	176.2
	2900	Motor rating(kW)	315	355	450
	3100	Air flow capacity(m³/min)	196.4	194	190.3
	3100	Motor rating(kW)	355	400	450

Model description: KGF100 represents screw blower specification; ①represents motor power in kW;②represents discharge pressure in kPa;
EPM represents permanent magnet variable speed drive design;

For example: KGF100EPM-110/40 - KGF100 is the screw blower specification, which is about the maximum air flow of this model in (m³/min),
110 means motor power is 110kW, 40 means discharge pressure at 40kPa.

Remark: Adekom reserves the right to make changes without prior notice. For further information, please contact the manufacturer or your local sales agent.
