Nitrogen is an essential gas used in numerous industries, including food packaging, electronics manufacturing, and pharmaceutical production. At ADEKOM, we understand the critical need for a reliable and efficient nitrogen supply, and our nitrogen gas generation systems offer a sustainable and economical solution. Our cutting-edge nitrogen gas generators are meticulously engineered to provide on-site nitrogen production, ensuring cost savings, convenience, and high-purity nitrogen for a wide range of industrial applications.

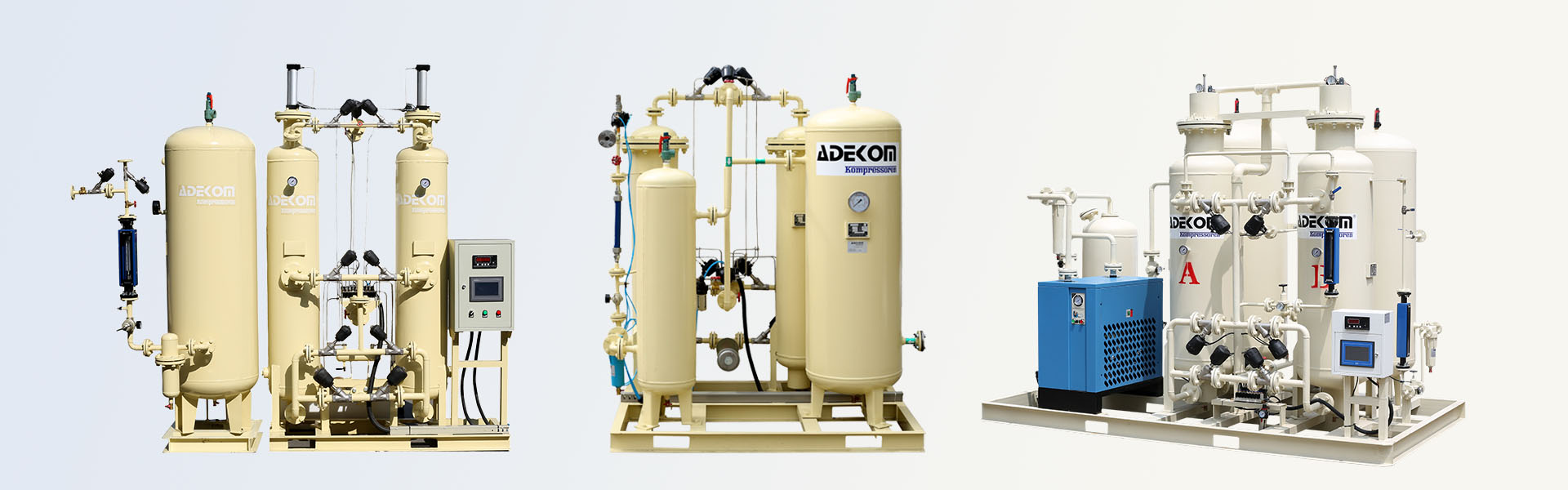

Adekom KSN series Nitrogen Generators utilize clean compressed air as raw material and zeolite molecular sieves as adsorbents to produce nitrogen through Pressure Swing Adsorption (PSA) technology. This process separates nitrogen from the air based on adsorption properties and diffusion rates, achieving high-purity nitrogen efficiently and cost-effectively.
Nitrogen Purity and Capacity
PSA technology relies on the adsorption and desorption of gases under pressure. Zeolite molecular sieves selectively adsorb nitrogen, enriching the output in nitrogen. Regeneration occurs through pressure release, ensuring continuous operation and consistent nitrogen quality.
Compressed Air Requirements
To maintain optimal performance, incoming compressed air must be dried and purified with appropriate air treatment equipment, including air dryers, filters, and air receivers. This prevents contamination of the adsorbent and ensures long-term system reliability.
With a robust design, advanced technology, and reliable operation, Adekom KSN series Nitrogen Generators is an ideal solution for industries requiring high-purity nitrogen.
KSN—A nitrogen generator parameter table (purity: 99.9%)
|
Model |
Output (Nm³/h) |
Effective gas consumption (Nm³/min) |
Import and export caliber (mm) |
Note |
|
|
KSN—5A |
5 |
0.4 |
DN15 |
DN15 |
Air purification system and PSA nitrogen generator to be installed in one skid |
|
KSN—10A |
10 |
0.7 |
DN25 |
DN25 |
|
|
KSN—20A |
20 |
1.3 |
DN25 |
DN25 |
|
|
KSN—30A |
30 |
2 |
DN25 |
DN25 |
|
|
KSN—40A |
40 |
2.6 |
DN32 |
DN25 |
|
|
KSN—60 A |
60 |
4 |
DN40 |
DN32 |
Air purification system and PSA nitrogen generator on different skids |
|
KSN—80A |
80 |
5.2 |
DN40 |
DN40 |
|
|
KSN—100A |
100 |
6.7 |
DN50 |
DN40 |
|
|
KSN—120A |
120 |
7.9 |
DN50 |
DN40 |
|
|
KSN—150A |
150 |
10 |
DN50 |
DN40 |
|
KSN—B nitrogen generator parameter table (purity: 99.99%)
|
Model |
Output (Nm³/h) |
Effective gas consumption (Nm³/min) |
Import and export caliber(mm) |
Note |
|
|
KSN—5B |
5 |
0.5 |
DN15 |
DN15 |
Air purification system and PSA nitrogen generator to be installed in one skid |
|
KSN—8B |
8 |
0.9 |
DN25 |
DN15 |
|
|
KSN—12B |
12 |
1.3 |
DN25 |
DN15 |
|
|
KSN—20B |
20 |
2.1 |
DN32 |
DN25 |
|
|
KSN—30B |
30 |
2.9 |
DN32 |
DN25 |
|
|
KSN—40B |
40 |
4.1 |
DN40 |
DN25 |
Air purification system and PSA nitrogen generator on different skids |
|
KSN—60B |
60 |
6.3 |
DN40 |
DN32 |
|
|
KSN—80B |
80 |
8.2 |
DN50 |
DN40 |
|
|
KSN—100B |
100 |
11 |
DN50 |
DN40 |
|
|
KSN—120A |
120 |
13 |
DN65 |
DN40 |
|
|
KSN—160B |
140 |
15 |
DN65 |
DN50 |
|
|
KSN—180B |
160 |
17 |
DN65 |
DN50 |
|
KSN—C nitrogen generator parameter table (purity: 99.999%)
|
Model |
Output (Nm³/h） |
Effective gas consumption (Nm³/min） |
Import and export caliber (mm) |
Note |
|
|
KSN—5C |
5 |
0.8 |
DN25 |
DN15 |
Air purification system and PSA nitrogen generator to be installed in oneskid |
|
KSN—10C |
10 |
1.8 |
DN25 |
DN15 |
|
|
KSN—20C |
20 |
3.6 |
DN40 |
DN15 |
|
|
KSN—30C |
30 |
5.3 |
DN40 |
DN25 |
|
|
KSN—40C |
40 |
7 |
DN50 |
DN25 |
|
|
KSN—50C |
50 |
8.7 |
DN50 |
DN25 |
Air purification system and PSA nitrogen generator on different skids |
|
KSN—60C |
60 |
10.5 |
DN50 |
DN32 |
|
|
KSN—80C |
80 |
13.8 |
DN65 |
DN40 |
|
|
KSN—100C |
100 |
17.7 |
DN65 |
DN40 |
|
|
KSN—150C |
150 |
26.5 |
DN80 |
DN40 |
|
|
KSN—200C |
200 |
35.5 |
DN100 |
DN50 |
|
Note：
1.Suction compressed air pressure of 0.8Mpa (gauge pressure), 0 ℃, 0 m elevation and 80% relative humidity for the design basis.
2.Adekom reserves the right to make changes without prior notice. For further information, please contact the manufacturer or your local sales agent.
Pressure swing adsorption (PSA) nitrogen generators are used in many industries to separate high-purity nitrogen gas from compressed air:
