The gas produced by anaerobic digestion processes must, before either being fed into the co-generators or entering the distribution lines, be appropriately dried and filtered in order to both protect the system from corrosion and optimize the overall energy yield.

Adekom meets the specific technical needs of biogas plants regarding to the correct purification and desiccation of biogas, thanks to an extensive range of dedicated biogas solutions.

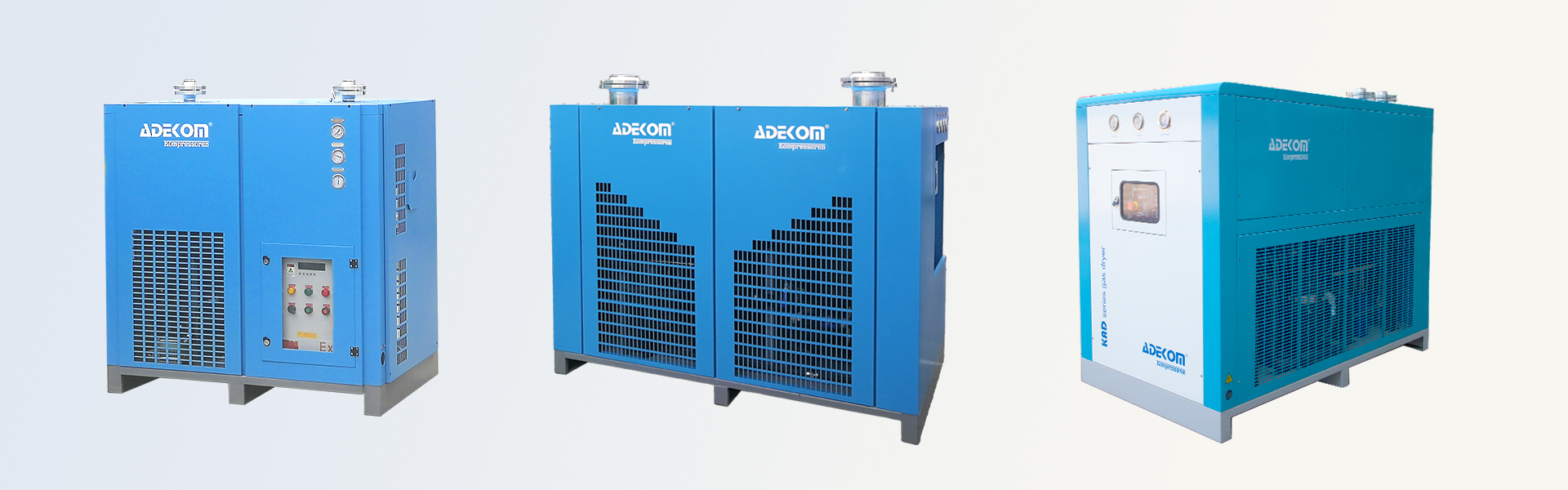

Specifically designed for water removal of incoming low pressure raw biogas or high pressure biogas after compression, KAD(G) is a compact packaged solution suitable for outdoor installation. KAD(G) is mounted on a robust galvanized steel frame with rigid canopy, drying process achieved by energy efficient refrigeration cycle includes compressor, condenser and evaporator, plus a water separation/condensate discharge system. All parts in contact with biogas are in stainless steel, ensuring stable and secure operation and an extended working life.

  Main characteristics include:

• Compact packaged design mounted in an easy to install canopy.
• Designed for external installation.
• Gas flow rate from 180 Nm3/h up to 3000 Nm3/h
• Plug and play, arrives ready to operate.
• Gas side entirely in stainless steel.
• Advanced Heat Exchanger Design reduces energy consumption and safeguards the dew point.
• High efficiency stainless steel demister separators with condensate outlets ensure lowest dew points and highest operating efficiency.
• Insulated heat exchangers for maximum system efficiency.

KAD(G) can meet with American petrochemical API standard, European explosion-proof ATEX standard, European CE standard, American UL standard, Canada CSA standard, …etc.
