Oxygen (O2) is used across a wide range of industries, from aquaculture to bioenergy, metallurgy, and pharmaceutical production. In the past, companies could only out source oxygen from gas suppliers. Now, however, there is a much better option: The on-site generation of oxygen. It allows you to produce your own oxygen anytime you need and offers advantages ranging from cost savings to continuous availability.

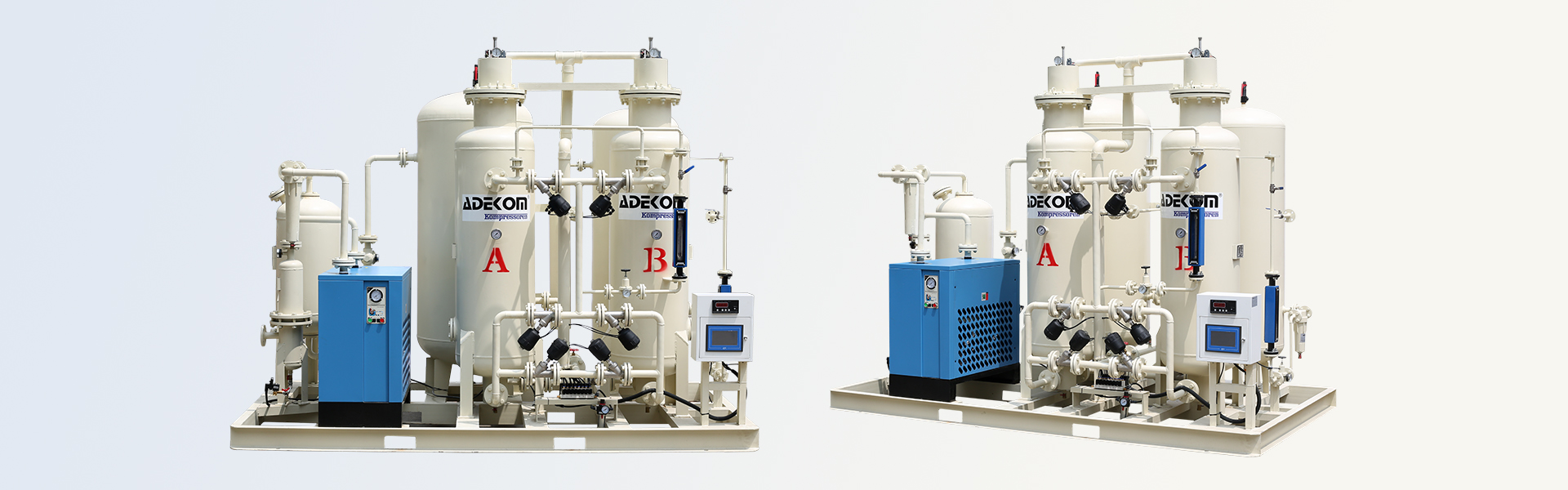

Adekom KSO Series Oxygen Generators use clean compressed air as raw material and zeolite molecular sieves as adsorbents to produce high-purity oxygen through Pressure Swing Adsorption (PSA) technology. This advanced process efficiently separates oxygen from nitrogen, providing a reliable solution for diverse industrial applications.
Oxygen Purity and Capacity
Using PSA technology, oxygen is enriched from air by leveraging the differential adsorption rates of nitrogen and oxygen on zeolite molecular sieves. The process alternates between adsorption and desorption cycles to ensure continuous and consistent oxygen production.
Compressed Air Requirements
To maintain optimal performance, incoming compressed air must be dried and purified using appropriate air treatment systems, including air dryers, filters, and receivers. This prevents contamination and prolongs the lifespan of the generator's components.
With advanced technology, robust design, and user-friendly operation, Adekom KSO series Oxygen Generators deliver efficient and cost-effective solutions for industries demanding high-purity oxygen.
|
Item Oxygen capacity |
Standard parameters 5~ 200 Nm³/h |
Optional |
Remarks (optional) Use VPSA |
|
>200Nm³/h |
|||
|
Oxygen pressure |
0.1~0.5 Mpa |
>0.5Mpa |
Using a booster |
|
Oxygen purity |
90~95% |
>95% |
Use cryogenic or passivation devices |
|
Dew point of oxygen (atmospheric pressure) |
-40℃ |
-40℃~-70℃ |
Using an adsorption dryer |
Oxygen generator parameter table (purity: 90%~95%)
|
Model |
Oxygen production （Nm³/h） |
Air consumption （Nm³/min） |
|
KSO-5 |
5 |
1.3 |
|
KSO-10 |
10 |
2.5 |
|
KSO-20 |
20 |
5 |
|
KSO-40 |
40 |
10.2 |
|
KSO-60 |
60 |
15 |
|
KSO-80 |
80 |
19.8 |
|
KSO-100 |
100 |
25 |
|
KSO-150 |
150 |
35 |
|
KSO-200 |
200 |
50 |
