A Fast Fill refuelling system provides gas on demand using a combination of the compressor and prepressurised storage to maximise a 200 bar fill for the vehicle.
There are three key elements: Priority Panel, Cascade Storage (typically 3 banks - High, Medium and Low) and Electronic Dispenser.
The Priority Panel prioritises the use of gas from the compressor to the Cascade Storage: firstly to the High Bank, then the Medium Bank and finally the Low Bank.
The Electronic Dispenser draws on gas from the storage in reverse order (Low, Medium, High) and finally directly from the compressor if demand has exceeded the storage capacity.
This system maximises vehicle fill and station capacity and is recommended for public stations.
|
|
Type |
Main material |
Medium |
Working pressure (MPa) |
Working temperature (℃) |
total water volume (m³) |
Filling Medium Volume under STP (Nm³) |
Filling Weight (kg) |
Tare weight (kg) |
Overall Dimension (mm) |
| Three-Bottle Set | CC03-1130-CNG-25A | 4130X | CNG | 25 | -40～50 | 3.39 | 1005 | 720 | 6900 | 6900x714x2153 |
| CC03-1330-CNG-25A | 4130X | CNG | 25 | -40～50 | 3.99 | 1185 | 850 | 7660 | 7500x714x2153 | |
| CC03-2000-CNG-25A | 4130X | CNG | 25 | -40～50 | 6 | 1782 | 1280 | 11300 | 11200x714x2153 | |
| CC03-2170-CNG-25A | 4130X | CNG | 25 | -40～50 | 6.51 | 1935 | 1386 | 11840 | 11700x714x2168 | |
| CC03-1500-CNG-25 | 4130X | CNG | 25 | -40～50 | 4.5 | 1336.5 | 960 | 9750 | 6600x780x2550 | |
| CC03-2000-CNG-25 | 4130X | CNG | 25 | -38～50 | 6.0 | 1782 | 1280 | 12600 | 8250x780x2550 | |
| CC03-3000-CNG-25 | 4130X | CNG | 25 | -38～50 | 9.0 | 2673 | 1920 | 18065 | 12000x780x2550 | |
| Four-Bottle Set | CC04-1130-CNG-25A | 4130X | CNG | 25 | -40～50 | 4.52 | 1340 | 960 | 8850 | 6800x1340x1518 |
| CC04-1330-CNG-25A | 4130X | CNG | 25 | -40～50 | 5.32 | 1580 | 1133 | 10140 | 7800x1340x1518 | |
| CC04-2000-CNG-25A | 4130X | CNG | 25 | -40～50 | 8 | 2376 | 1700 | 15090 | 11200x1340x1518 | |
| CC04-2170-CNG-25A | 4130X | CNG | 25 | -40～50 | 8.68 | 2580 | 1850 | 15700 | 11890x1340x1518 | |
| CC04-2000-CNG-25 | 4130X | CNG | 25 | -38～50 | 8 | 2376 | 1700 | 17000 | 8800x1560x1780 | |
| CC04-3000-CNG-25 | 4130X | CNG | 25 | -38～50 | 12 | 3564 | 2560 | 23995 | 12000x1560x1780 | |

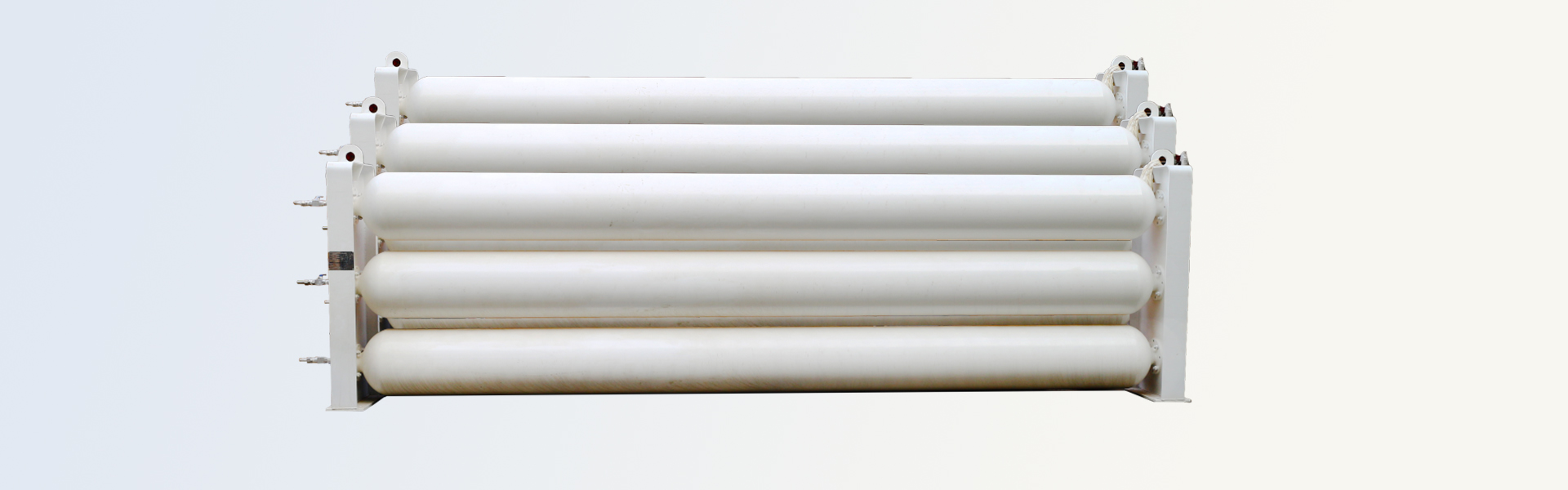

| Five-Bottle Set | CC05-1130-CNG-25A | 4130X | CNG | 25 | -40～60 | 5.65 | 1679 | 1203 | 10965 | 6900x1340x2168 |
| CC05-1330-CNG-25A | 4130X | CNG | 25 | -40～60 | 6.65 | 1976 | 1416 | 12690 | 7500x1340x2168 | |
| CC05-2000-CNG-25A | 4130X | CNG | 25 | -40～60 | 10 | 2972 | 2130 | 18190 | 11000x1340x2168 | |
| Six-Bottle Set | CC06-1130-CNG-25A | 4130X | CNG | 25 | -40～50 | 6.78 | 2010 | 1440 | 13100 | 6970x1340x2153 |
| CC06-1330-CNG-25A | 4130X | CNG | 25 | -40～50 | 7.98 | 2370 | 1700 | 15020 | 8095x1340x2153 | |
| CC06-2000-CNG-25A | 4130X | CNG | 25 | -40～50 | 12 | 3564 | 2560 | 22350 | 11150x1340x2153 | |
| CC06-2170-CNG-25A | 4130X | CNG | 25 | -40～50 | 13.02 | 3870 | 2775 | 23330 | 12000x1340x2153 | |
| CC06-1500-CNG-25 | 4130X | CNG | 25 | -38～50 | 9 | 2673 | 1920 | 22880 | 7200x1560x2550 | |
| CC06-2000-CNG-25 | 4130X | CNG | 25 | -38～50 | 12 | 3564 | 2560 | 25200 | 8400x1560x2550 | |
| CC06-3000-CNG-25 | 4130X | CNG | 25 | -38～50 | 18 | 5346 | 3840 | 35880 | 12000x1560x2550 |
Widely used in natural gas reserve and supply industry, natural gas separation and liquefaction industry, industrial boilers, drying equipment, furnaces, marine fuel industry, natural gas refuelling stations, household gas supply, Marine transport, liquefied petroleum gas (LPG) industry and other natural gas storage and supply applications.
