A pure gas, oxygen finds wide-ranging application across a broad variety of industries. It serves as a crucial resource in various manufacturing processes, supporting the production of chemicals, glass and steel, among other products. It also plays a pivotal role in medical settings and in wastewater treatment. In all these applications, ensuring the highest levels of equipment cleanliness is key for preventing gas impurities and gas-related accidents.

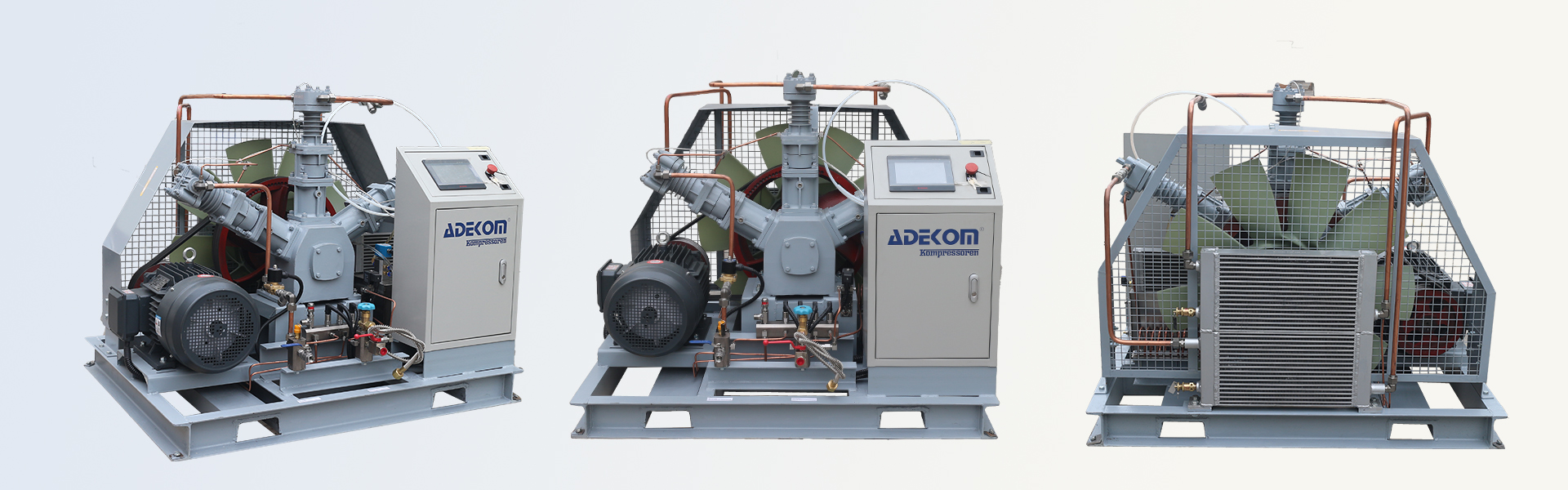

ADEKOM’s Oxygen Booster Compressors are designed for high reliability, long service life, and maintenance-free operation, delivering output pressures up to 150 bar. These versatile compressors are ideal for medical, commercial, and industrial applications requiring secondary pressurization of oxygen and other non-flammable gases.
Technical Specifications:
The compressor integrates an oil-free pump head, driving motor, electrical controls, valves, cooling water pump, flow meter, and solenoid valves, all mounted on a common skid for ease of use and installation.
|
NO. |
Model |
Inlet |
Discharge |
Flow rate |
Motor |
Dimension |
Weight |
Speed |
|
MPa |
MPa |
Nm³/h |
kW |
mm |
kg |
r/min |
||
|
1 |
KOB-(1-5)/4-150 |
0.4 |
15/20 |
1-5 |
4 |
1200*850*1100 |
350 |
470 |
|
2 |
KOB-10/4-150 |
0.4 |
15/20 |
10 |
5.5 |
1350*1050*1100 |
410 |
470 |
|
3 |
KOB-15/4-150 |
0.4 |
15/20 |
15 |
7.5 |
1350*1050*1100 |
420 |
580 |
|
4 |
KOB-20/4-150 |
0.4 |
15/20 |
20 |
11 |
1350*1050*1100 |
430 |
580 |
|
5 |
KOB-25/4-150 |
0.4 |
15/20 |
25 |
11 |
1350*1050*1100 |
430 |
640 |
|
6 |
KOB-30/4-150 |
0.4 |
15/20 |
30 |
15 |
1350*1050*1100 |
450 |
470 |
|
7 |
KOB-35/4-150 |
0.4 |
15/20 |
35 |
15 |
1350*1050*1100 |
450 |
470 |
|
8 |
KOB-40/4-150 |
0.4 |
15/20 |
40 |
15 |
1350*1050*1100 |
450 |
580 |
|
9 |
KOB-45/4-150 |
0.4 |
15/20 |
45 |
18.5 |
1450*1100*1250 |
520 |
580 |
|
10 |
KOB-50/4-150 |
0.4 |
15/20 |
50 |
18.5 |
1450*1100*1250 |
520 |
580 |
|
11 |
KOB-55/4-150 |
0.4 |
15/20 |
55 |
18.5 |
1450*1100*1250 |
520 |
580 |
|
12 |
KOB-60/4-150 |
0.4 |
15/20 |
60 |
22 |
1450*1100*1250 |
540 |
640 |
|
13 |
KOB-65/4-150 |
0.4 |
15/20 |
65 |
22 |
1450*1100*1250 |
540 |
640 |
|
14 |
KOB-70/4-150 |
0.4 |
15/20 |
70 |
22 |
1450*1100*1250 |
540 |
720 |
|
15 |
KOB-75/4-150-II |
0.4 |
15/20 |
75 |
22 |
1450*1100*1250 |
540 |
720 |
|
16 |
KOB-80/4-150-II |
0.4 |
15/20 |
80 |
15*2 |
2800*1250*1200 |
1060 |
580 |
|
17 |
KOB-85/4-150-II |
0.4 |
15/20 |
85 |
15*2 |
2800*1250*1200 |
1060 |
580 |
|
18 |
KOB-90/4-150-II |
0.4 |
15/20 |
90 |
18.5*2 |
2900*1320*1300 |
1250 |
580 |
|
19 |
KOB-95/4-150-II |
0.4 |
15/20 |
95 |
18.5*2 |
2900*1320*1300 |
1250 |
580 |
|
20 |
KOB-100/4-150-II |
0.4 |
15/20 |
100 |
18.5*2 |
2900*1320*1300 |
1250 |
580 |
