99% liquid water can be removed by installing air/water separator before the compressed air inline filters and drying equipment, which can guarantee better performance of the downstream treatment system equipment. The air compressor system will thus greatly improve energy efficiency and reducing maintenance costs.

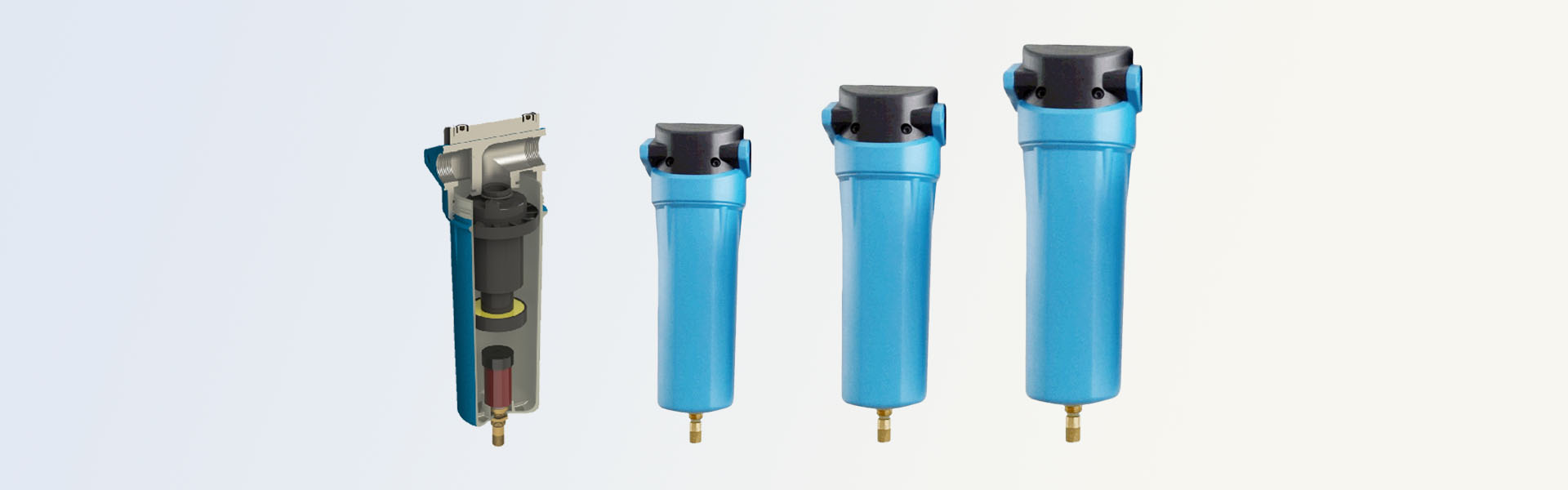

KWS series air/water separator is based on the principle of combining centrifugal force and current collection. The mechanism of gravity and collision is perfectly combined. It can effectively separate the water mist in the compressed air, separated liquid water is then discharged through automatic condensate drainer at the bottom.
|
Model |
Air Flow (Nm³/min)
|
Air connection (RP/DN) |
Weight
(kg)
|
Dimension (mm) |
Working pressure Bar(g) |
|
|
H |
W |
|||||
|
KWS013 |
1.3 |
Rp1/2" |
0.8 |
220 |
100 |
≤16bar |
|
KWS028 |
2.8 |
Rp3/4" |
0.9 |
280 |
100 |
|
|
KWS035 |
3.5 |
Rp1" |
2.1 |
320 |
130 |
|
|
KWS050 |
5.0 |
Rp1-1/2" |
2.1 |
320 |
130 |
|
|
KWS075 |
7.5 |
2.4 |
420 |
130 |
||
|
KWS100 |
10.5 |
2.4 |
420 |
130 |
||
|
KWS150 |
15 |
Rp2-1/2" |
5.7 |
540 |
180 |
|
|
KWS200 |
21 |
7.3 |
720 |
180 |
||
|
KWS250 |
25 |
Rp3" |
14.5 |
870 |
225 |
|
|
KWS300 |
30 |
15 |
870 |
225 |
||
|
KWS360 |
36 |
20 |
1010 |
225 |
||
|
KWS450 |
15 |
25 |
1010 |
225 |
||
As the after-treatment equipment of air compressor, it is widely used in many industries, such as automobile manufacturing, chemical industry, metallurgy, light industry, textile, printing, papermaking, iron and steel, electronics, electrics, medicine, food, building materials, glass, environmental protection ,etc.
