CNG Compressor

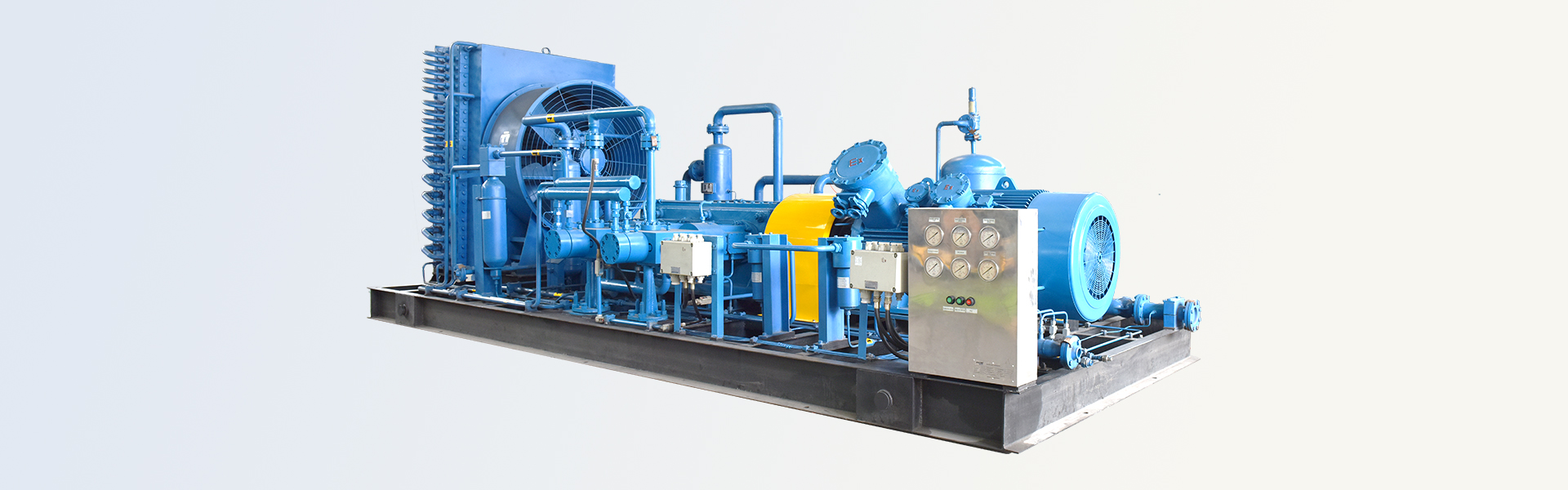

At the heart of every CNG system stands the high-pressure compressor. ADEKOM CNG -compressors and boosters are specially designed for natural gas applications and represent the most efficient and safe solution for all kinds of CNG systems.

Available in V-type, W-type, M-type, and D-type configurations, designed as water-cooled or air-cooled, oil-free, reciprocating piston compressors. These compressors represent a mature, technically advanced product, tailored to meet the rigorous demands of natural gas compression.

Key Features and Components:

Comprehensive Design: Each unit includes a compressor head, canopy, explosion-proof motor, cooling and lubrication systems, buffering and filtration systems, oil separator, and a PLC-based control and monitoring system with temperature and pressure sensors.
Skid-Mounted Integration: All non-explosion-proof components, including the PLC variable-frequency control cabinet, are skid-mounted for ease of installation and operation. Process piping is pre-configured with flanges and joints for seamless on-site integration.
International Standards Compliance: American petrochemical API standard, European explosion-proof ATEX standard, European CE standard, American ASME and UL standards ready.

Performance Highlights:

Symmetrical Balance Design: Ensures balanced movement, low vibration, and an oil-free cylinder design to maintain gas purity.
High Capacity: Supports large gas processing volumes and wide gas intake ranges.
Durability: Low-speed operation minimizes wearing, extending the lifespan of components.
Noise and Vibration Reduction: Engineered for quiet, stable operation.
Advanced Control: PLC system offers high automation, remote monitoring capabilities, and flexible start-up options, including direct start, auto-coupling, soft start, and variable frequency.
Cooling Options: Air cooling, water cooling, and mixed cooling systems are available to suit different operational requirements.
Flexible Drive Mechanisms: Smaller units utilize V-belt drives, while bigger units feature direct electric or gas-driven systems with speed and capacity controls, including bypass functionality for maximum flexibility and efficiency.

CNG-Compressed natural gas solutions

When it comes to CNG solutions, ADEKOM can provide you with the right high pressure solutions that best suit your compressed natural gas needs. Our CNG solutions for filling stations, including online, mother, and daughter stations, tailored to meet diverse refueling needs.

Key Specifications:

Suction Pressure:1–50 bar
Capacity Range:80–8,000 Nm³/h
Final Pressure:250 bar (optional up to 350 bar)
Rated Power:40–600 kW

CNG Mother Stations:

In addition to standard refueling capabilities, mother stations can fill high-pressure CNG semi-trailers for transportation to sub-stations or areas without natural gas pipelines. This system supports:

Automobile Refueling: Directly or via sub-stations.

Gas Supply to Remote Areas:Semi-trailers transport CNG to small or medium cities for residential and industrial use via pressure-regulated pipeline integration.

CNG Daughter Stations:Sub-stations receive CNG from semi-trailers, process it (storage, compression, etc.), and distribute it to vehicles using advanced gas sales equipment.

ADEKOM offers all the ancillaries required for a fully operational refuelling station:

Dispensers - fast fill and time fill options
Dehydration Units
CNG Storage Cascade and Filling Equipment

Technical Parameter

Item	Model	Discharge capacity (m³/min)	Suction pressure MPa(G)	Discharge pressure MPa(G)	Motor output （KW）	Dimensions( L×W×H) (mm)
1	KDF-0.45/(2～6)-220	80～180	0.2～0.6	22	30	3200×2200×2200
2	KDF-0.4/8-210	200	0.8	21	37	3500×2300×2200
3	KDF-0.55/(3～8)-250	130～290	0.3～0.8	25	55	4500×2700×2200
4	KDF-0. 15/(30～200)-250	270～1800	3～20	25	55	6000×2700×2200
5	KDFD-0.35/(30～200)-220	650～4000	3～20	22	90	6000×2700×2700
6	KDFD-0.45/(30～200)-250	800～5400	3～20	25	110	6000×2700×2700
7	KDF-0.5/53-250	1500	5.3	25	110	6000×3000×2700
8	KDF-0.9/22-250	1200	2.2	25	132	6000×3000×2700
9	KDF-0.85/(10～20)-250	500～1000	1.0～2.0	25	132	6000×3000×2700
10	KDF-1.25/16-250	1200	1.6	25	160	6000×3200×2700
11	KDF-1.25/(10～20)-250	800～1500	1.0～2.0	25	185	6000×3000×2700
12	KDFD-1.3/(7～16)-250	600～1200	0.7～1.6	25	185	6000×3200×2700
13	KDF-1.7/(10～13)-250	1100～1300	1.0～1.3	25	200	6000×3200×2700
14	KDF-4.2/(2.5～3.5)-250	850～1100	0.25～0.35	25	220	6000×3420×2450
15	KDFD-1/(15～30)-250	950～1850	1.5～3.0	25	220	5970×3700×3550
16	KDFD-3/(2～5)-250	500～1000	0.2～0.5	25	220	7500×3600×2700
17	KDF-4/4-250	1200	0.4	25	220	6000×3400×2400
18	KDF-1.6/23-250	2300	2.3	25	250	3600×3450×1400
19	KDFD-1.7/20-250	2200	2.0	25	250	7500×3600×2700
20	KMF-2.55/(10～13)-250	1600～2100	1.0～1.3	25	280	5500×2700×3400
21	KMFD-5/(1～3.5)-250	300～1350	0. 1～0.35	25	280	8500×3000×3000
22	KMFD-8.5/(1～2)-250	1000～1500	0. 1～0.2	25	280	10000×3000×3030
23	KMF-2.5/(6～16)-250	1000～2500	0.6～1.6	25	280	5500×2700×3400
24	KMF-13/(0.2～0.8)-220	900～1400	0.02～0.08	22	315	7000×3000×3400
25	KMFD-2/(10～20)-250	1300～2500	1.0～2.0	25	315	7000×3000×3400
26	KMF-2.65/(10～13)-250	1700～2200	1.0～1.3	25	315	7000×3000×3400
27	KMFD-1.5/(35～45)-250	1700～3500	3.5～4.5	25	315	7000×3200×3400
28	KMF-1.7/(35～60)-250	3500～4200	3.5～6.0	25	355	7000×3200×3800
29	KMF-1.8/(12～40)-250	1400～4500	1.2～4.0	25	355	7000×3200×3800
30	KMF-2.5/(15～20)-250	2400～3150	1.5～2.0	25	400	70000×3000×2800
31	KMF-2.4/(18～25)-250	2700～3700	1.8～2.5	25	400	70000×3000×2800
32	KMF-3/(10～20)-250	1800～3700	1.0～2.0	25	400	7000×3000×3400
33	KMF-3.4/(10～13)-25	2200～2800	1.0～2.0	25	400	7000×3000×3400
34	KMF-7.5/(3.8～4)-250	2150～2250	0.38～0.4	25	450	6500×3200×3800
35	KMF-4.2/(8～12)-250	2200～3200	0.8～1.2	25	450	6500×3200×3800
36	KMF-5/(8～12)-250	2700～3900	0.8～1.2	25	450	8000×3000×2800
37	KVFD-0.6/14-250	480	1.4	25	75	6000×2500×2500
38	KVFD-1.7/(1～3.5)-250	200～450	0. 1～0.35	25	90	6500×2500×2700
39	KVF-1.8/5-250	600	0.5	25	110	6500×2300×2400
40	KVFD-4/(1.7-2.4)-250	600～800	0. 17～0.24	25	185	6500×2700×2700
41	KVFD-1/(25～35)-220	1500～3100	2.5～3.5	22	220	7500×2700×2700
42	KVFD-1. 1/(25～40)-250	1700～2700	2.5～4.0	25	250	7500×2700×2700
43	KVFD-2.2/(7～10)-250	1000～1450	0.7～1.0	25	250	8000×2700×2700
44	KVFD-2/(10～15)-250	1300～1900	1.0～1.5	25	280	8000×2700×2700
45	KW-3.6/1-250	400	0.1	25	110	4000×2500×2300
46	KW-4.75/1-250	550	0.1	25	132	4000×2500×2300
47	KW-3.6/3-250	850	0.3	25	185	4000×2500×2300
48	KWD-3.6/(2～3)-250	600～850	0.2～0.3	25	185	6000×2700×2700
49	KW-7.5/(1～2)-250	850～1300	0. 1～0.2	25	280	5500×2300×2300
50	KWD-7.5/(1～2)-250	850～1300	0. 1～0.2	25	280	8000×2700×2700
51	KZF-0. 1/(30～200)-250	180～1200	3～20	25	37	4000×2200×2200
52	KZFD-0. 1/(30～200)-250	180～1200	3～20	25	37	5000×2700×2700

Natural Gas Booster Compressor

Item	Model	Discharge capacity (m³/min)	Suction pressure MPa(G)	Discharge pressure MPa(G)	Motor output （KW）	Dimensions( L×W×H) (mm)
1	KDFW-0.35/(0. 1～0.7)-83	20～35	0.01～0.07	8.3	11	3500×2500×2660
2	KDFW-1.5/(4～7)-11	210～700	0.4～0.7	1.1	22	3300×2300×2600
3	KDFWD-2.7/1-15	350	0.1	1.5	37	4000×2600×2600
4	KDW-7/0.1-3	450	0.01	0.3	37	3000×2500×1800
5	KDFD-15/(1-2.5)-4	1800～3150	0. 1～0.25	0.4	90	5000×2700×2700
6	KDFW-6.5/6-16	2700	0.6	1.6	110	5000×2700×2500
7	KDWD-3/20-35	3750	2.0	3.5	110	6500×3000×2700
8	KDW-8.2/8-15.5	4400	0.8	1.55	132	4000×2700×2650
9	KDFW-7.5/2.5-20	1600	0.25	2.0	132	55000×2700×2650
10	KDFW-9/2.5-20	1900	0.25	2.0	160	55000×2700×2650
11	KDFWD-2.65/(10～15)-50	1500～2500	1.0～1.5	5.0	160	6500×3000×2700
12	KDF-10.5/2-18	1900	0.2	1.8	185	6500×3300×2700
13	KDFWD-4/10-60	2650	1.0	6.0	220	7000×3400×2700
14	KDFWD-4.5/10-48.3	2950	1.0	4.83	220	7000×3400×2700
15	KDFWD-5.5/(10～15)-(33~37)	3600～5200	1.0～1.5	3.3～3.7	220	7000×2700×2700
16	KDFWD-5.8/(8～10)-(25~30)	3000～3800	0.8～1.0	3	250	7000×3700×3400
17	KDWD-8/6-38	3350	0.6	3.8	280	7000×2700×2700
18	KMFW-12.5/1-40	1500	0.1	4.0	220	7500×2800×2600
19	KMFW-20/0.2-57	1500	0.02	5.7	250	7500×2800×3400
20	KMFW-26.4/0.05-15	1650	0.005	1.5	250	7500×2800×3400
21	KMFW-14.7/(0.5～1)-35	1300～1750	0.05～0. 1	3.5	250	8000×2800×2700
22	KMFWD-15/(1-2)-30	1700～2150	0. 1～0.2	3	315	8500×2800×2700
23	KMFWD-6.5/10-60	4250	1.0	6.0	315	8500×2800×2700
24	KMFW-25/2-10	4500	0.2	1	315	5000×2700×2000
25	KMFD-11/3-63	2600	0.3	6.3	355	8500×2800×2700
26	KMF-18/2-37	3250	0.2	3.7	400	7000×3000×3400
27	KVFWD-3.5/(1.5～2.5)-12	500～700	0. 15～0.25	1.2	55	5500×2300×2500
28	KVFW-3/(3～4)-35	700～900	0.3～0.4	3.5	75	3500×2000×2500
29	KVFW-3.8/(3～6)-35	900～1500	0.3～0.6	3.5	132	3500×2000×2700
30	KVW-22/1-4	2600	0.1	0.4	132	3500×2000×1600

Application area

CNG-Compressed natural gas solutions

Key Specifications:

Suction Pressure: 1–50 bar
Capacity Range: 80–8,000 Nm³/h
Final Pressure: 250 bar (optional up to 350 bar)
Rated Power: 40–600 kW

CNG Mother Stations:

Automobile Refueling: Directly or via sub-stations.
Gas Supply to Remote Areas: Semi-trailers transport CNG to small or medium cities for residential and industrial use via pressure-regulated pipeline integration.

CNG Daughter Stations:

Sub-stations receive CNG from semi-trailers, process it (storage, compression, etc.), and distribute it to vehicles using advanced gas sales equipment.

ADEKOM offers all the ancillaries required for a fully operational refuelling station:

Dispensers - fast fill and time fill options
Dehydration Units
CNG Storage Cascade and Filling Equipment
