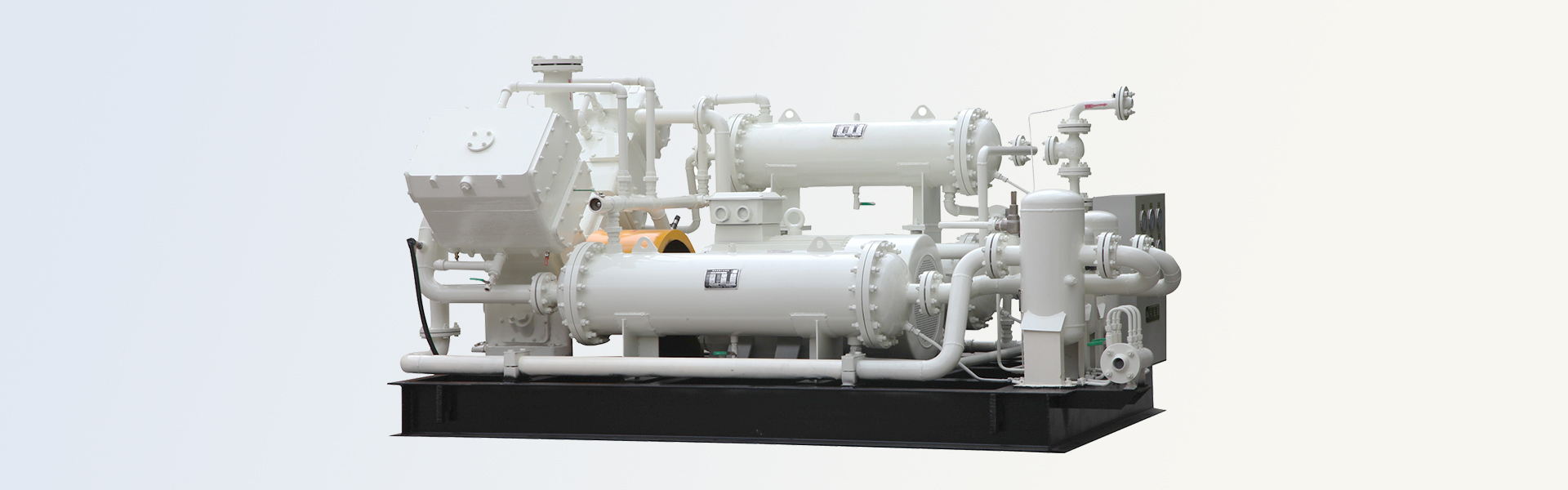

Adekom's Oil free reciprocating compressors offer highly reliable solutions for CO2/N2 applications. Engineered for continuous 24/7 industrial service, these compressors are designed for optimal efficiency, minimal maintenance, and extended overhaul intervals, making them ideal for challenging operating conditions.
Our CO2/N2 booster compressors are crafted for low-maintenance operation. They feature high-quality cylinders, pistons, piston rods, valves, motors, stainless steel components, and a robust driving system to ensure long-lasting performance.
|
Model |
Flow rate (m3/min) |
Working pressure (MPA) |
Cooling method |
Dimension(L*W*H) (mm) |
Speed (Rpm) |
Motor (kW) |
|
KVW-1.2/1-20 |
1.2 |
2.0 |
Water cooled |
1700*1600*1300 |
980 |
22 |
|
KVW-3.4/90 |
3.4 |
9.0 |
Water cooled |
3700*1870*1750 |
730 |
55 |
|
KVW-3.5/24 |
3.5 |
2.4 |
Water cooled |
3200*1830*1750 |
980 |
37 |
|
KVW-6.8/30 |
6.8 |
3.0 |
Water cooled |
2600*1800*1750 |
730 |
75 |
|
KVW-7.5/0.8-25 |
7.5 |
2.5 |
Water cooled |
3200*1830*1750 |
980 |
132 |
|
KVW-10/26 |
10 |
2.6 |
Water cooled |
3200*1830*1750 |
980 |
132 |
|
KVW-12/20 |
12 |
2.0 |
Water cooled |
3700*1870*1750 |
980 |
132 |
|
KVW-20/30 |
20 |
3.0 |
Water cooled |
4700*1900*1830 |
980 |
250 |
It is mainly used for process gas unloading, loading, tank emptying, residual gas recovery and residual liquid recovery process systems. It is widely used in pressure boosting, voltage stabilization, power and purging in process flows, and can also provide a stable power source for power plants, food industries, medicine and experimental research units.
1. Compressed gas as power After being compressed, air can be used as power, mechanical and pneumatic tools, as well as control instruments and automation devices.
2. Compressed gas for synthesis and polymerization In the chemical industry, some gases are synthesized and polymerized after the pressure is increased by a compressor. For example, helium is synthesized from chlorine and hydrogen, methanol is synthesized from hydrogen and carbon dioxide, and urea is synthesized from carbon dioxide and ammonia. Polyethylene is produced under high pressure.
3. Gas transportation Compressors are also used for pipeline transportation and bottling of gases. For example, long-distance coal gas and natural gas transportation, bottling of chlorine and carbon dioxide, etc.
