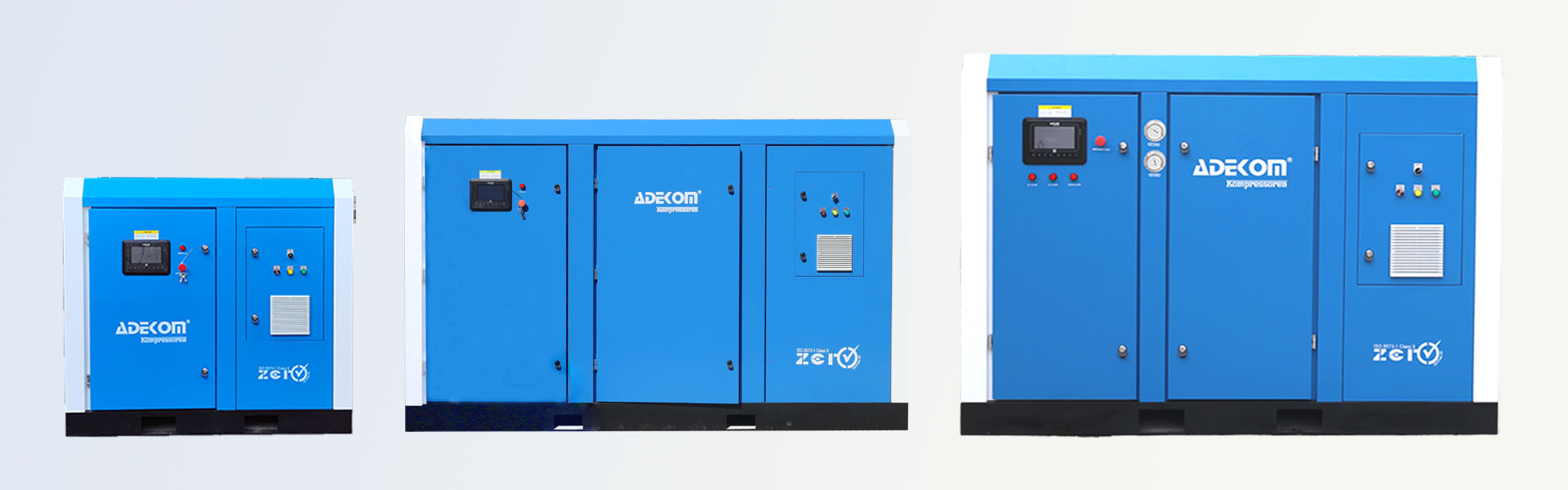

ADEKOM ET series oil-free rotary screw air compressor combines advanced oil-injected screw compressor technology with the European-engineered ETC oil-free conversion system to deliver high-purity, oil-free compressed air effortlessly.
Innovative Oil-Free Conversion Technology
At the heart of the ETC system is a proprietary, eco-friendly catalyst material that facilitates a catalytic oxidation reaction at a controlled reaction temperature. This process ensures:
Optimal Energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings and oil seal that help the compressor airend to operate with good dynamic balance, low vibration, low rotation speed and low noise level.
T.E.F.C Highly efficient, totally enclosed fan-cooled (T.E.F.C.),IP55, class F electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from “SKF”are fitted for continuous trouble-free operation.
It is controlled by a microcomputer and runs fully automatically. It detects the exhaust pressure, temperature and other operating data. Through the joint action of the microcomputer controller, frequency converter and frequency conversion motor, it outputs a constant exhaust pressure for the user. When the air is not used for a long time, it can automatically shut down and restart when the air is restored, thus achieving the purpose of energy saving (frequency conversion model); Chinese and English display, with 12 important indicator warnings; the display screen displays pressure, temperature, maintenance reminders, high temperature and high pressure records of the operation history for maintenance and reference, and can provide manual and automatic control functions to maximize the reliable operation of the air compressor and increase its service life.
Inside the catalytic conversion chamber, it is full of catalytic which is solid, highly porous system of mega-, macro-and micropores. The high porosity means also a high surface area of approx..200m2/g.
Chemical reaction the inside Eco Tec Converter is a physical-chemical process which uses this special catalyst to convert the oil and other hydrocarbons into water and CO2.
After it has passed the Eco Tec Converter the quality of the absolutely oil free compressed air exceeds by the requirements of ISO 8573-1 class 1 standard.
| Model | KA7ET | KA11ET | KB15ET | KB18ET | KB22ET | KC30ET | KC37ET | KC45ET | KD55ET | KD75ET | ||
| Capacity FAD /Working pressure | m³/min /bar(g) | 1.21/8 | 1.93/8 | 2.16/8 | 3.19/8 | 3.62/8 | 5.20/8 | 6.42/8 | 7.62/8 | 10.10/8 | 12.96/8 | |
| 1.06/10 | 1.65/10 | 1.93/10 | 2.88/10 | 3.25/10 | 4.80/10 | 5.69/10 | 6.71/10 | 8.70/10 | 11.39/10 | |||
| 0.85/13 | 1.28/13 | 1.61/13 | 2.42/13 | 2.93/13 | 4.05/13 | 4.69/13 | 5.54/13 | 7.45/13 | 10.20/13 | |||
| Cooling method | Air-cooled | Air-cooled and water-cooled available | ||||||||||
| Discharge air temp | ℃ | Air-cooled version: Ambient temp.+8~10 ℃ Water-cooled version:≤40℃ | ||||||||||
| Noise level | dB(A） | 68±3 | 69±3 | 71±3 | 72±3 | 75±3 | ||||||
| Main motor | Power | kW | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Starting method | Y-Δ Star-Delta / DOL Starting | |||||||||||
| Power supply | 220V/380V/415V/440V 50Hz/60Hz | |||||||||||
| Dimensions | L | mm | 1500 | 1600 | 1900 | 2200 | 2650 | 3000 | ||||
| W | mm | 900 | 1000 | 1100 | 1380 | 1600 | 1700 | |||||
| H | mm | 1350 | 1500 | 1600 | 1700 | 1880 | 1800 | |||||
| Weight | kg | 500 | 650 | 680 | 770 | 800 | 1200 | 1250 | 1400 | 1950（1800） | 2600（2400） | |
| Discharge air pipe connection | inch | 3/4" | 1" | 1-1/4" | 2" | |||||||
| Cooling water pipe connection | inch | 1-1/4" | ||||||||||
| Model | KE90ET | KE110ET | KE132ET | KF160ET | KF185ET | KF220ET | KF250ET | KG315ET | ||
| Capacity FAD /Working pressure | m³/min /bar(g) | 16.20/8 | 20.48/8 | 23.50/8 | 27.80/8 | 31.00/8 | 37.77/8 | 43.95/8 | 56.82/8 | |
| 14.00/10 | 17.50/10 | 21.00/10 | 25.00/10 | 28.10/10 | 33.77/10 | 38.50/10 | 51.34/10 | |||
| 12.10/13 | 14.85/13 | 18.38/13 | 21.50/13 | 25.00/13 | 29.98/13 | 33.00/13 | 45.62/13 | |||
| Cooling method | Air-cooled and water-cooled available | |||||||||
| Discharge air temp | ℃ | Air-cooled version: Ambient temp.+8~10 ℃ Water-cooled version:≤40℃ | ||||||||
| Noise level | dB(A） | 75±3 | 78±3 | 82±3 | ||||||
| Main motor | Power | kW | 90 | 110 | 132 | 160 | 185 | 220 | 250 | 315 |
| Starting method | Y-△ Star-Delta | |||||||||
| Power supply | 380V/415V/440V 50Hz/60Hz | |||||||||
| Dimensions | L | mm | 3600 | 4000 | 4500 | 5200 | 6200 | |||
| W | mm | 1900 | 2000（1900） | 2100（2000） | 2200 | 2300 | ||||
| H | mm | 2100（2000） | 2100（2000） | 2200（2100） | 2300 | 2400 | ||||
| Weight | kg | 3250（3150） | 3500（3300） | 3800（3600） | 5100（4950） | 5300（5150） | 6500（6300） | 6800（6600） | 9600（9400） | |
| Discharge air pipe connection | mm | DN80 | DN100 | DN125 | ||||||
| Cooling water pipe connection | mm | DN40 | DN50 | DN65 | ||||||
Remarks:
（1) Unit performance measured according to ISO 1271, Ed. 3, Annex C-1996；
（2) Noise level measured according to Pneurop / Cagi PN8NTC 2.2 test code: tolerance ±3dB (A);
（3) Data inside brackets is for water-cooled models;
（4) Adekom reservers the right make changes withou prior notice. For further information, please contact the manufacturer or your local sales agent.
Oil-free air compressors are used in many industries where air quality is important for the production process and end product. These applications include:
In the oil and gas industry, oil-free air compressors are used for reliability and safety. They prevent oil contamination in processes like pipeline testing and instrument air supply, which helps maintain air purity and operational efficiency. This also ensures compliance with safety regulations and reduces maintenance costs.
