ADEKOM Integrated Full-feature Screw Compressor

Product

Innovation is not limited

Product Oil Injected Rotary-Screw Compressor

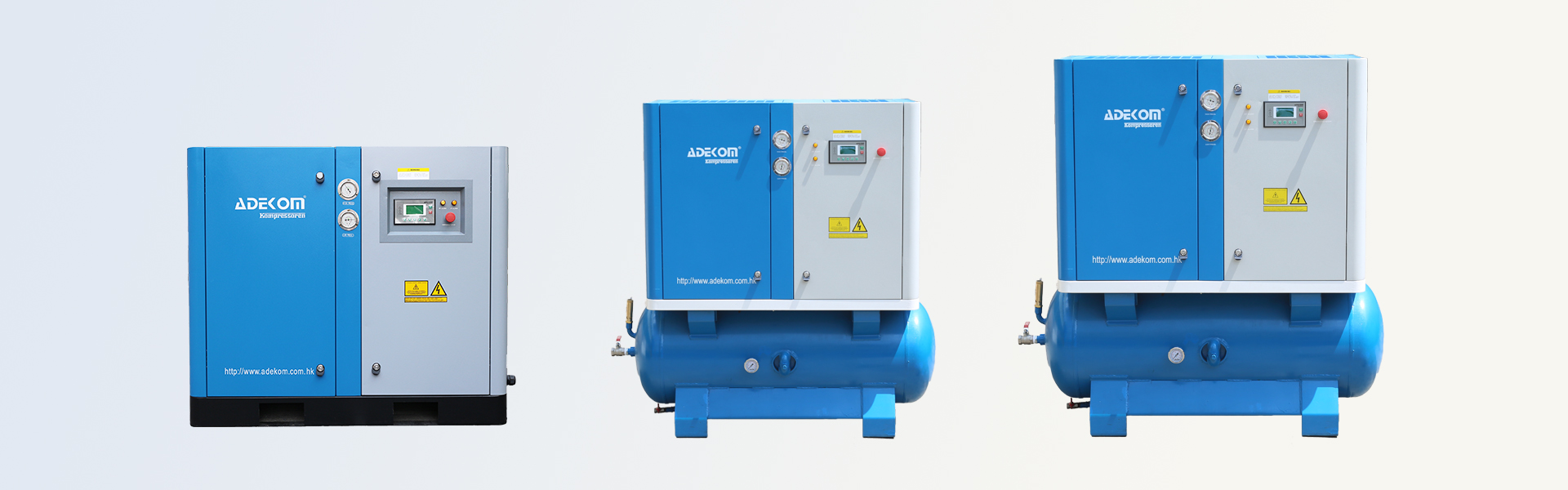

Integrated Full-feature Screw Compressor

With its compact footprint, low noise operation and integration of air and condensate treatment equipment, the K-compact series offers complete versatility for your production. The K-compact’s integrated design allows the compressor to be placed on the production floor, reducing external piping costs and minimizing pressure drop across the system. This increased efficiency can create strong energy savings for diverse industrial applications.

Product Features

State-of-the-art Compressor Airend

Optimal Energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings and oil seal that help the compressor airend to operate with good dynamic balance, low vibration, low rotation speed and low noise level.

Energy Saving Electric Motor

T.E.F.C Highly efficient, totally enclosed fan-cooled (T.E.F.C.),IP55, class F electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from “SKF”are fitted for continuous trouble-free operation.

High Efficiency Air Cooler System

Big capacity models adopt double cooling fan design. The first cooling fan starts up with the compressor and the second one starts up only when the operating temperature exceeds 80℃ and it stops when goes back below 70℃ in order to save energy.

Intelligent Touch Screen Control Panel

The simple-to-use automatic electric control panel continuously monitors and displays overall system performance status with pro-active service indications, alarms for malfunctions and safety shutdowns. Advanced sequence control for multi-units installation and remote control as option.

High efficiency air treatment system

The refrigerated air dryer is equipped with high-precision air filters to provide dry and clean compressed air, ensuring the quality of air used by users.

Technical Parameter

K-compact Series Full Feature Rotary Screw Air Compressor with Integrated Air Dryer and Horizontal Air Tank

Model			K3D/250	K4D/250	K5D/250	KA7D/250	KA11D/500	KB15D/500
Capacity FAD/Working pressure		m³/min/bar(g)	0.44/8	0.60/8	0.85/8	1.21/8	1.93/8	2.16/8
			0.37/10	0.51/10	0.72/10	1.06/10	1.65/10	1.93/10
			0.30/13	0.40/13	0.61/13	0.85/13	1.28/13	1.61/13
Cooling method			Air cooled
Discharge air temp		℃	Ambient temp. +8～10℃
Noise level		dB(A）	68±3				69±3
Main motor	Power	kW	3	4	5.5	7.5	11	15
	Starting method		Direct starting				Y-ΔStar-Delta starting
	Power Supply		220V/380V/440V 50Hz/60Hz
Dimensions	L	mm	1640		1640		2090
	W	mm	700		700		800
	H	mm	1560		1580		1850
Pressure dew point		℃	3～10
Pressure dew point		L	250				500
Weight		kg	500	500	550	570	660	680
Discharge air pipe		Inch	3/4"		3/4"		3/4"

K-compact Series Full Feature Rotary Screw Air Compressor with Integrated Air Dryer without Horizontal Air Tank

Model			K3D	K4D	K5D	KA7D	KA11D	KB15D
CapacityFAD/Workingpressure		m³/min/bar(g)	0.44/8	0.60/8	0.85/8	1.21/8	1.93/8	2.16/8
			0.37/10	0.51/10	0.72/10	1.06/10	1.65/10	1.93/10
			0.30/13	0.40/13	0.61/13	0.85/13	1.28/13	1.61/13
Cooling method			Air cooled
Dischargeair temp		℃	Ambient temp. +8～10℃
Noise level		dB(A）	68±3				69±3
Main motor	Power	kW	3	4	5.5	7.5	11	15
	Starting method		Direct starting				Y-ΔStar-Delta starting
	Power Supply		220V/380V/440V 50Hz/60Hz
Dimension	L	mm	1240		1300		1650
	W	mm	650		700		800
	H	mm	1120		1120		1200
Pressure dew poin		℃	3～10
Weight		kg	340	340	380	400	460	480
Discharge air pipe		Inch	1/2"		1/2"		3/4"

K-compact Series Full Feature Rotary Screw Air Compressor with Horizontal Air Tank without Integrated Air Dryer

Model			K3/250	K4/250	K5/250	KA7/250	KA11/500	KB15/500
Capacity FAD/Working pressure		m³/min/bar(g)	0.44/8	0.60/8	0.85/8	1.21/8	1.93/8	2.16/8
			0.37/10	0.51/10	0.72/10	1.06/10	1.65/10	1.93/10
			0.30/13	0.40/13	0.61/13	0.85/13	1.28/13	1.61/13
Cooling method			Air cooled
Discharge air temp		℃	Ambient temp. +8～10℃
Noise level		dB(A）	68±3				69±3
Main motor	Power	kW	3	4	5.5	7.5	11	15
	Starting method		Direct starting				Y-Δ reduction voltage starting
	Power Supply		220V/380V/440V 50Hz/60Hz
Dimensions	L	mm	1600		1600		2000
	W	mm	680		700		800
	H	mm	1560		1580		1850
Pressure dew poin		℃	3～10
Air tank volume		L	250				500
Weight		kg	430	430	460	480	620	620
Discharge air pipe		Inch	1"		1"		1"

Application area

It can be widely used in laser cutting, laboratories, bio-pharmaceuticals, mining, manufacturing, metal processing, craft brewing, furniture processing, automotive services, and spraying industry...etc.
