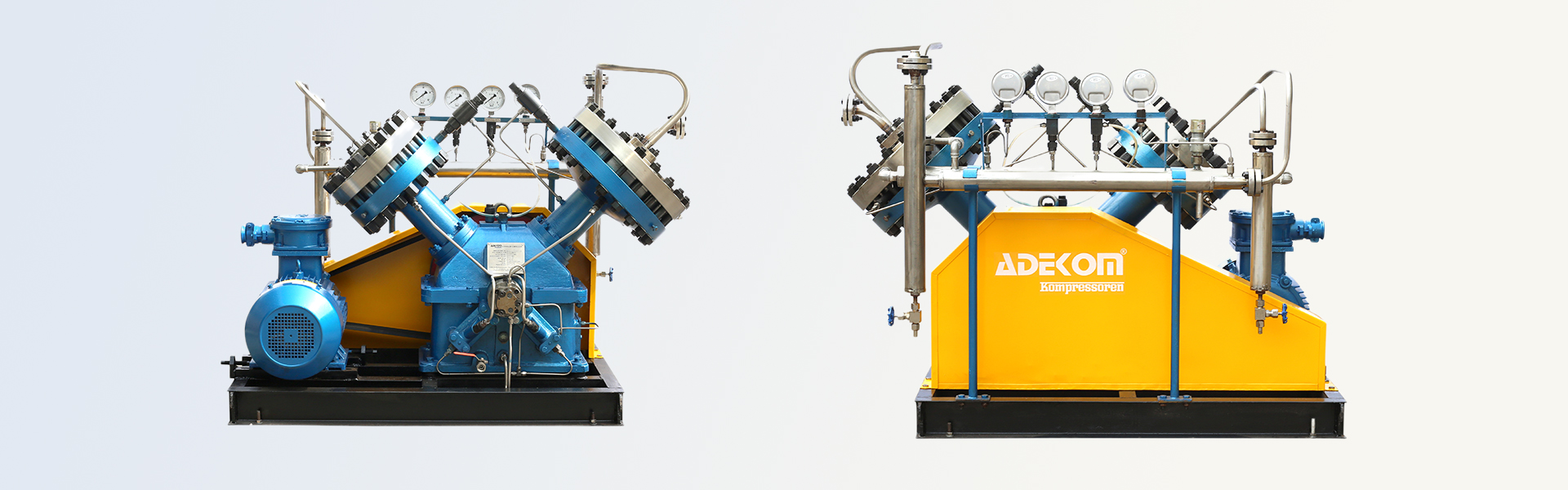

ADEKOM diaphragm compressors are cutting-edge positive displacement compressors which provide lubricant and technical abrasion-free compression of gases and gas mixtures. As they operate leakage-free, they are particularly suitable for high-purity applications and for use with explosive, toxic and expensive gases. Our diaphragm compressors are suitable for compressing hydrogen, helium, argon, ethylene, fluorine, hydrogen sulfide, chlorine, monosilane, or nitrogen trifluoride.diaphragm compressors are cutting-edge positive displacement compressors which provide lubricant and technical abrasion-free compression of gases and gas mixtures. As they operate leakage-free, they are particularly suitable for high-purity applications and for use with explosive, toxic and expensive gases. Our diaphragm compressors are suitable for compressing hydrogen, helium, argon, ethylene, fluorine, hydrogen sulfide, chlorine, monosilane, or nitrogen trifluoride.
Typically used, for example, for filling storage tanks, for feeding into continuous processes or as circulating gas compressors. They are characterized by their design specifications, which make the machines particularly safe, reliable, and easy to maintain. We generally provide our diaphragm compressors as complete systems with base frame, drive, pulsation dampers, coolers, fittings (automatic or manual), instruments and controls.
|
NO. |
Model |
Volumetric Flow Rate (Nm³/h) |
Inlet Pressure MPa(G) |
Discharge Pressure MPa(G) |
Cooling Water Flow Rate L/h |
Crankshaft Speed r/min |
Motor Power kW |
Dimensions(LXWXH) mm |
Weight kg |
Remind |
|
1 |
KGD3-1000/50～200-450 |
1000 |
5～20 |
45 |
5500 |
420 |
55 |
4300X2500X2600 |
8500 |
45MPa |
|
2 |
KGP3-500/50～200-450 |
500 |
5～20 |
45 |
3000 |
420 |
30 |
3500X2500X2600 |
7500 |
|
|
3 |
KGL2-200/50～200-450 |
200 |
5～20 |
45 |
1850 |
430 |
8.5 |
2540X1600X2600 |
3000 |
|
|
4 |
KGZ2-100/50～200-450 |
100 |
5～20 |
45 |
1100 |
430 |
11 |
2540X1600X2600 |
2500 |
|
|
5 |
KGL2-80/16-450 |
80 |
1.6 |
45 |
1850 |
430 |
8.5 |
2540X2500X2800 |
2500 |
|
|
6 |
KGL2-50/16-450 |
50 |
1.6 |
45 |
1500 |
430 |
15 |
2540X2500X2800 |
2500 |
|
|
7 |
KGL1-3/16-450 |
3 |
1.6 |
45 |
400 |
400 |
4 |
2540X2500X2800 |
1800 |
|
|
8 |
KGD3-240/100～200-900 |
240 |
10～20 |
90 |
4500 |
420 |
45 |
4300X2500X2600 |
8500 |
90MPa |
|
9 |
KGP3-120/100~200-900 |
120 |
10～20 |
90 |
3000 |
420 |
30 |
3500X2500X2600 |
7500 |
|
|
10 |
KGP3-400/350～450-900 |
400 |
35～45 |
90 |
3000 |
420 |
30 |
3500X2500X2600 |
7500 |
|
|
11 |
KGD3-400/15～80-220 |
400 |
1.5～8 |
22 |
5500 |
420 |
55 |
4300X2500X2600 |
8000 |
Hydrogen Recovery |
|
12 |
KGP3-200/15～80-220 |
200 |
1.5～8 |
22 |
3000 |
420 |
30 |
3500X2500X2600 |
7000 |
|
|
13 |
KGL2-150/15～80-220 |
150 |
1.5～8 |
22 |
1850 |
430 |
8.5 |
2540X1600X2600 |
2800 |
|
|
14 |
KGZ2-75/15～80-220 |
75 |
1.5～8 |
22 |
1100 |
430 |
11 |
2540X1600X2600 |
2500 |
|
|
15 |
KGD5-1650/44-220 |
1650 |
4.4 |
22 |
16000 |
420 |
160 |
4300X3200X2200 |
16000 |
filled to 22MPa |
|
16 |
KGD5-1250/20-220 |
1250 |
2 |
22 |
16000 |
420 |
160 |
4300X3200X2200 |
16000 |
|
|
17 |
KGD5-1000/31-220 |
1000 |
3.1 |
22 |
16000 |
420 |
160 |
4300X3200X2200 |
16000 |
|
|
18 |
KGD5-1000/20-220 |
1000 |
2 |
22 |
16000 |
420 |
160 |
4300X3200X2200 |
16000 |
|
|
19 |
KGD5-1000/15-220 |
1000 |
1.5 |
22 |
6000 |
420 |
160 |
4300X3200X2200 |
16000 |
|
|
20 |
KGD5-750/20-210 |
750 |
2 |
22 |
13200 |
420 |
132 |
4300X3200X2200 |
15000 |
|
|
21 |
KGD5-750/15-220 |
750 |
1.5 |
22 |
11000 |
420 |
110 |
4300X3200X2200 |
14000 |
|
|
22 |
KGD5-750/10-220 |
750 |
1 |
22 |
13200 |
420 |
132 |
4300X3200X2200 |
15000 |
|
|
23 |
KGD5-750/6-220 |
750 |
0.6 |
22 |
16000 |
420 |
160 |
4300X3200X2200 |
16000 |
|
|
24 |
KGD4-500/20-210 |
500 |
2 |
22 |
7500 |
420 |
75 |
4000X3000X2000 |
12000 |
|
|
25 |
KGD4-500/15-220 |
500 |
1.5 |
22 |
9000 |
420 |
90 |
4000X3000X2000 |
12000 |
|
|
26 |
KGD5-500/6-220 |
500 |
0.6 |
22 |
11000 |
420 |
110 |
4300X3200X2200 |
14000 |
|
|
27 |
KGD4-2000/150～200-320 |
2000 |
15～20 |
32 |
7500 |
420 |
75 |
4000X3000X2000 |
2000 |
filled to32MPa |
|
28 |
KGD3-1500/150～200-320 |
1500 |
15～20 |
32 |
5500 |
420 |
55 |
4000X3000X2000 |
9000 |
|
|
29 |
KGP3-750/150～200-320 |
750 |
15～20 |
32 |
3000 |
420 |
30 |
3500X2500X2600 |
7500 |
|
|
30 |
KGD5-1000/20-320 |
1000 |
2 |
32 |
16000 |
420 |
160 |
4300X3200X2200 |
15000 |
Diaphragm compressors are machines and equipment that compress and transport various high-purity gases, precious rare gases, toxic and harmful gases, and corrosive gases. They are widely used in various hydrogen production systems, nuclear power and nuclear energy, food and medicine, petrochemicals, electronic materials, national defense and military industries, polysilicon industry, chlorine filling, benzene hydrogenation, tar hydrogenation and other process processes.
