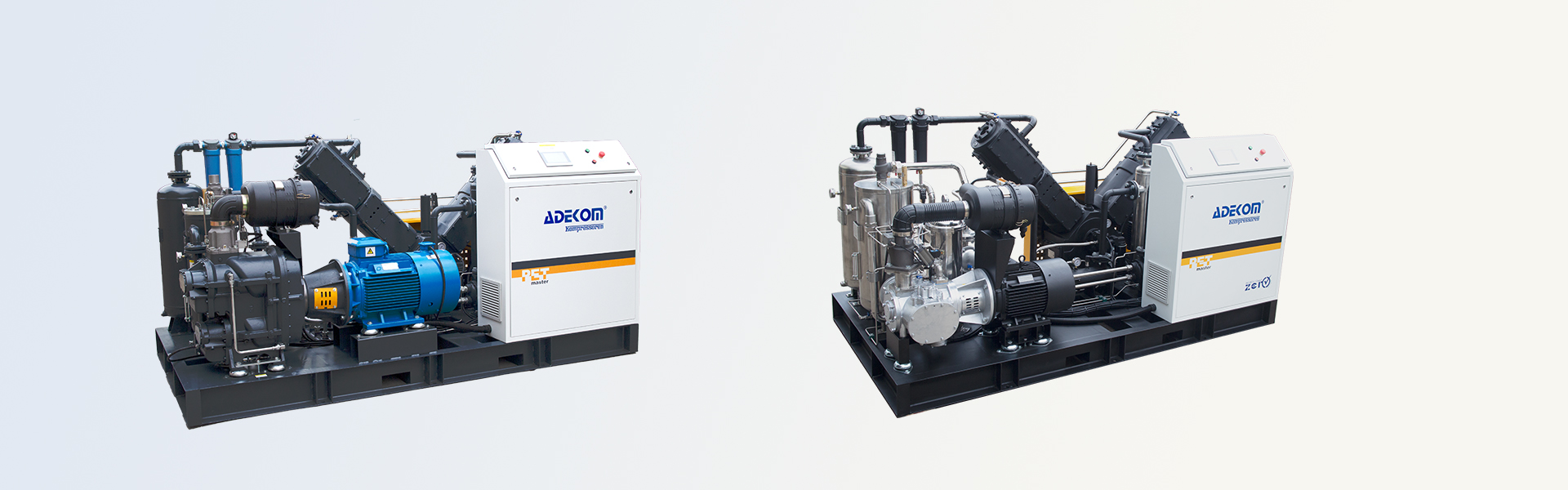

ADEKOM KSP Series is specially designed for PET bottling application to meet with market ever rising requirements of high efficiency and energy saving. This combination compressor organically combines oil-free screw compressor technology and oil-free piston booster technology to achieve a stable and reliable, low noise level, low energy consumption, small footprint high pressure air system.

Standard Capacity FAD: 6-30 m3/min

Working Pressure: 30-40bar (Can be up to 50bar)

Installed Motor Power: 67kW - 352kW

100% Oil-free compressed, meeting with ISO8573-1 Class 0 air quality standard

Oil-Free PET MASTER

ISO 8573-1:2010 ( E ) Air Quality Standard:

Comparing with high capacity large piston compressors in the market, these large piston compressors use single-acting cylinders, having a large leakage ratio, low efficiency, and high energy consumption, which increase operating costs. Also, for high capacity big piston compressors, design, manufacturing, and purchase costs are extremely high. Furthermore, foundation is needed to be built before installation due to excessive vibration, this incurs higher investment and maintenance costs.

Simple structure and low maintenance cost

Less wearing parts, easy maintenance, less vibration, no foundation requirement; screw compression as first stage, which greatly reduce loading of piston booster, extending component life; piston is V / W type structure, in good dynamic balance, no need to replace piston rings regularly; Hierarchical starting (equivalent to 50% of the starting current of the complete machine), reducing the impact on the power grid, high-efficiency permanent magnet inverter duty motors, which are 8% more efficient than standard VSD motors, and up to 20% more energy-saving by variable speed regulation, effectively reduces operating costs;

Stable operation

Stable pressure to improve production efficiency and end product quality;

Intelligent PLC control

Centralized PLC controller to monitor every parameter of the compressor operation (remote access via smartphone is possible). Very compact design to minimize pipework installation and save space. After training, operators can complete daily operation and maintenance.
