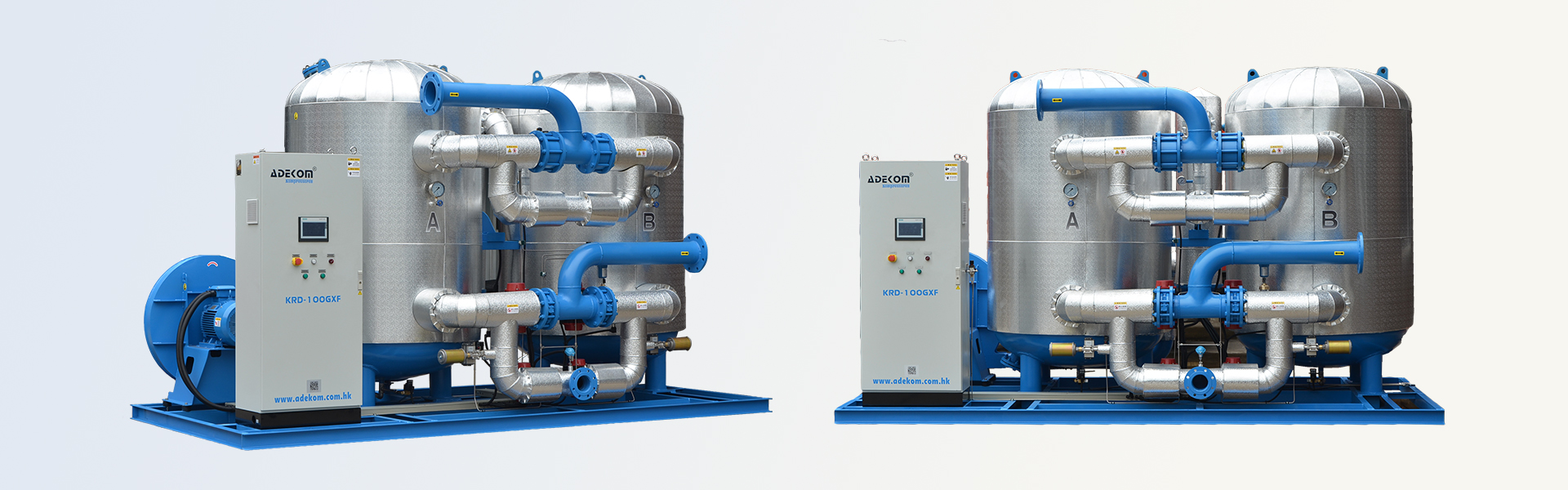

The Zero Purge Blower Heated Adsorption Dryer is an advanced energy-efficient solution designed to optimize drying performance without consuming compressed air during the regeneration process. Utilizing a blower, the system draws ambient air to heat the adsorbent and desorb moisture. During the cooling phase, hot air circulates through an independent high-efficiency cooler and the regeneration tower in a closed-loop cycle, ensuring seamless cooling without any compressed air consumption. This innovative approach significantly reduces energy consumption and operating costs.
This cutting-edge dryer builds upon the conventional blower-heated regeneration dryer by incorporating an independent high-performance cooler and additional advanced components. Unlike traditional systems that rely on finished compressed air for cooling the regeneration tower and pipelines—resulting in energy losses—the Zero Purge design eliminates this inefficiency.
When compared to traditional heatless desiccant dryers, this advanced system delivers substantial savings, reducing energy consumption by over 70%. Its streamlined design not only ensures reliability and cost-effectiveness but also offers lower initial investment requirements and higher long-term returns. The result is a sustainable, high-performance solution tailored for modern industrial needs.|
Model |
Treatment Capacity (Nm3/min) |
Blower Power Rating (kW) |
Heater Power Rating (kW) |
Connections |
Power supply (V/Hz) |
Weight (kg) |
Dimensions (mm) |
||
|
L |
W |
H |
|||||||
|
KRD-15GXF+ |
17 |
10 |
1.6 |
DN65 |
380/50 |
1200 |
1750 |
1200 |
2450 |
|
KRD-20GXF+ |
23 |
17 |
2 |
DN80 |
1800 |
2000 |
1450 |
2630 |
|
|
KRD-30GXF+ |
35 |
25 |
5.5 |
DN100 |
2100 |
2350 |
1700 |
2800 |
|
|
KRD-40GXF+ |
45 |
30 |
5.5 |
DN100 |
2250 |
2600 |
1850 |
2850 |
|
|
KRD-50GXF+ |
55 |
35 |
7.5 |
DN125 |
2400 |
2800 |
1950 |
2950 |
|
|
KRD-60GXF+ |
65 |
42 |
7.5 |
DN125 |
3150 |
2950 |
2000 |
3100 |
|
|
KRD-80GXF+ |
85 |
50 |
11 |
DN150 |
3750 |
3200 |
2300 |
3300 |
|
|
KRD-100GXF |
110 |
65 |
11 |
DN150 |
4000 |
3500 |
2600 |
3450 |
|
As the after-treatment equipment of air compressor, it is widely used in many industries, such as automobile manufacturing, chemical industry, metallurgy, light industry, textile, printing, papermaking, iron and steel, electronics, electrics, medicine, food, building materials, glass, environmental protection ,etc.
