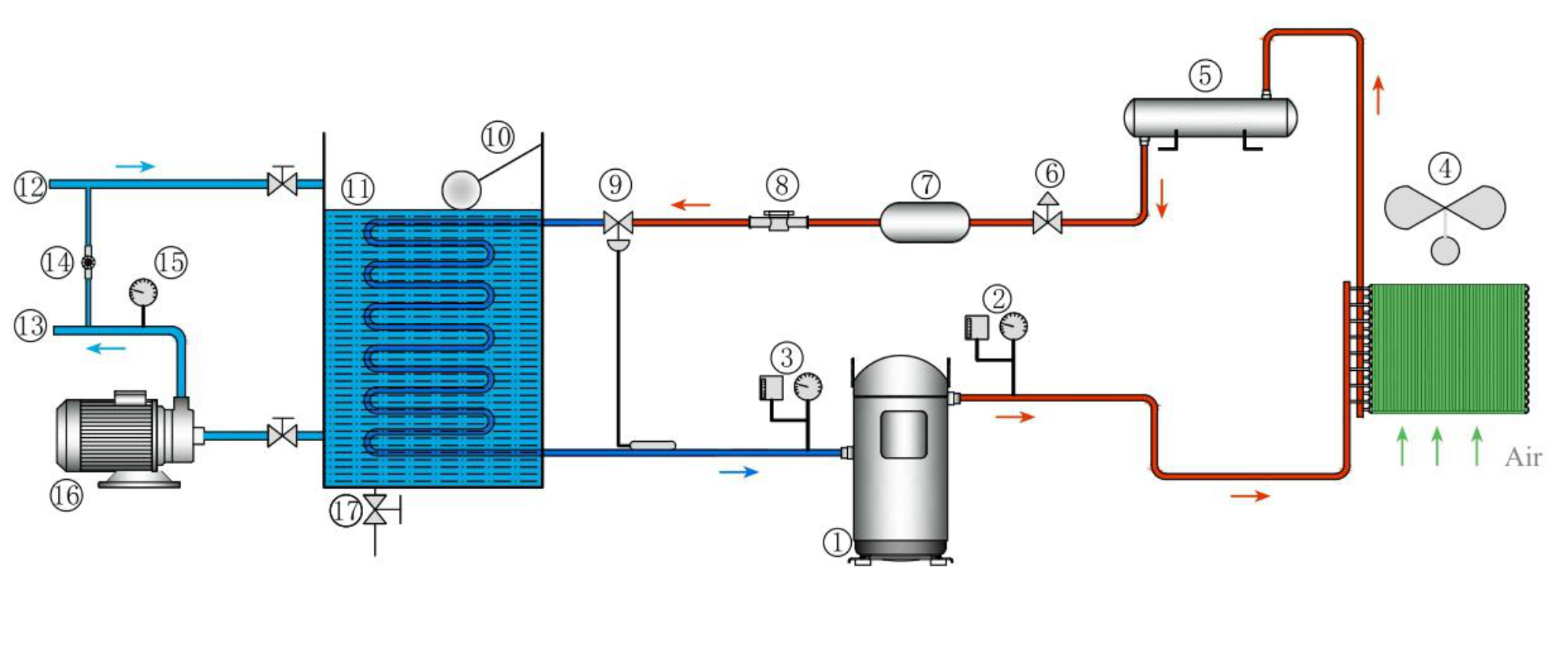

Air-cooler industrial

Air-cooled industrial chillers dissipate heat of itself by air circulating through aluminum finned copper tube condenser. Its working principle: the refrigerant in the chiller absorbs heat from evaporator and evaporates into gas,then compressed by compressor into high-temperature and high

pressure gas,changes into liquid refrigerant and dissipates heat into air when going through the aluminum finned condenser, and finally goes through the expansion valve and release the pressure,then back to the evaporator,this is the complete refrigeration cycle.The features of air-cooled

chillers include:

①No need external cooling water source,easy to install；

②Suitable for countries & areas that lack of water or with poor water quality；

③Dissipating heat with blowers,the heat dissipation effectis greatly affected by the ambient temperature.

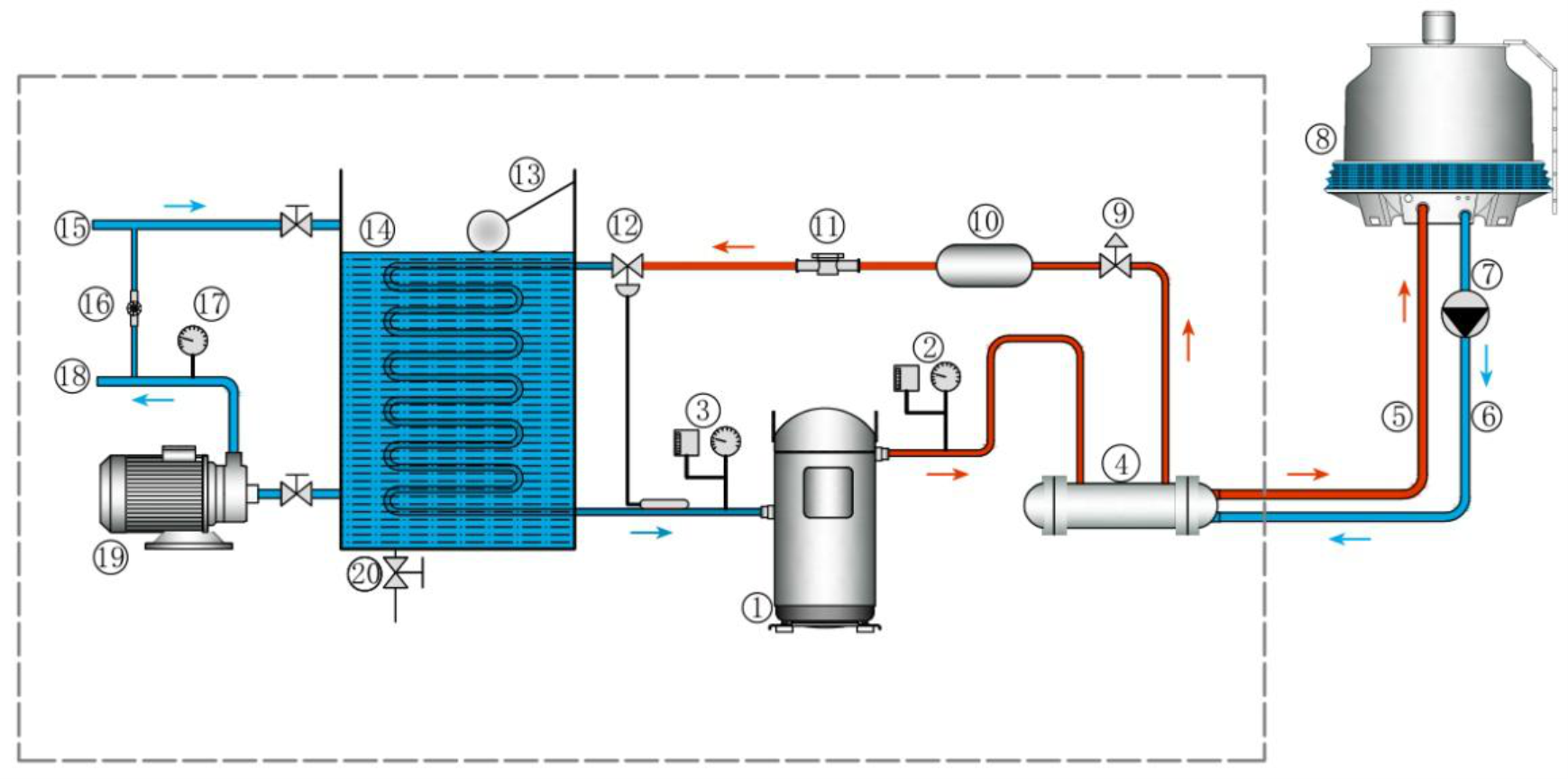

Water-cooler industrial

Water-cooled industrial chillers dissipate heat through cooling water circulation.The working principleis similar to air-cooled chillers,but when refrigerant going through condenser, the heatis brought away by cooling water from cooling tower instead of air.After absorbing heatin the

condenser,the water goes to the cooling tower for dissipating heat with air,and then flows back to the condenser to continue circulating.The features of water-cooled chillers include:

①Stable heat dissipating and less affected by the ambient temperature；

②Need external cooling water source,installation a little bit complicated than air cooled chiller；

③Suitable for countries and areas that with sufficient water sources and good quality.
